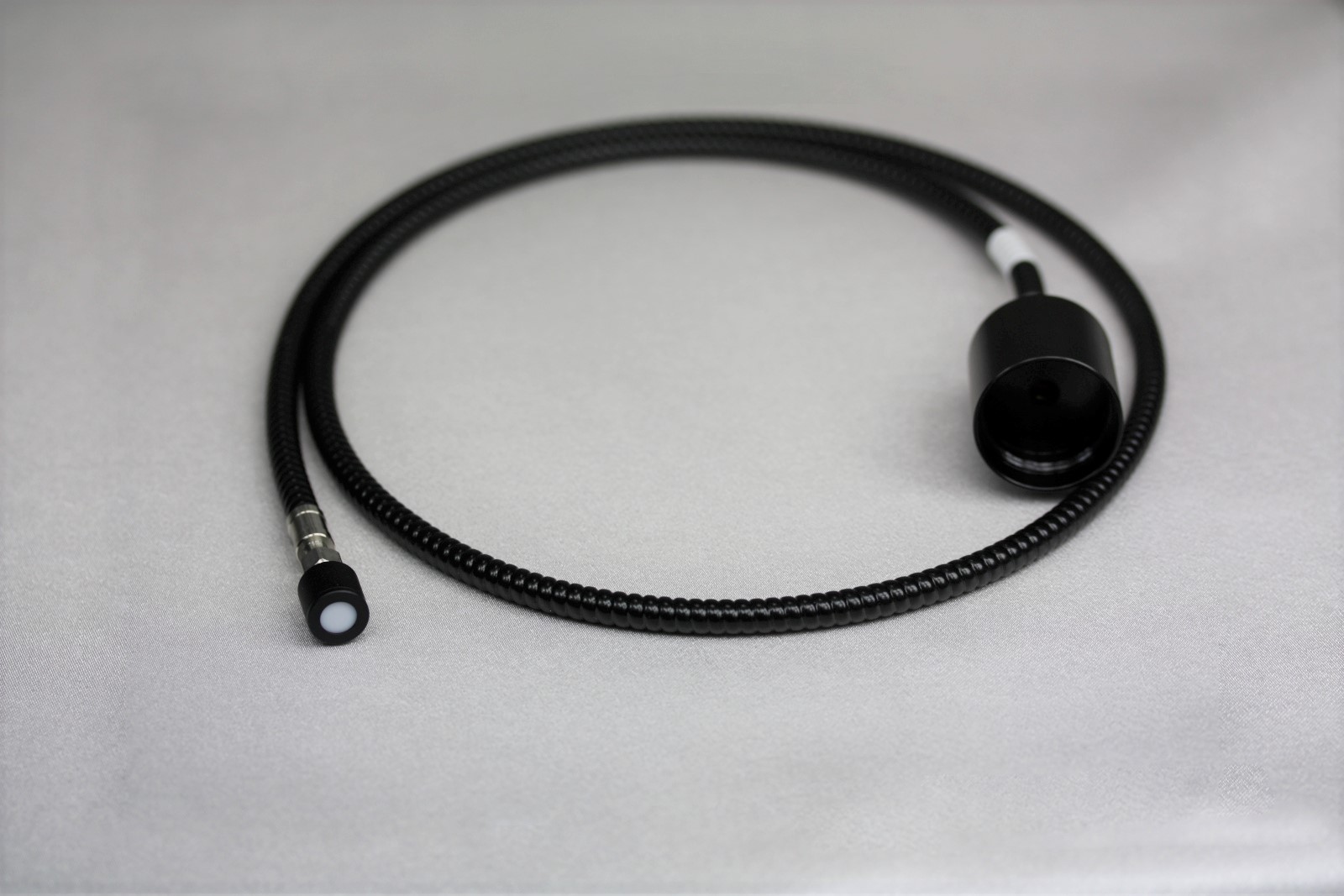

In axis remote diffusor

This diffusor was developed for measurements at difficult accessible locations or where not enough space is available. Examples are goniometers and production set ups with UV lamps. The extension is realized with a fiber bundle and the diffusor is available with different fiber length. The measuring diameter of the diffuser is 12 mm.

This accessory is available for JETI specbos 1211-2, specbos 1211-UV-2, spectraval 1501 and spectraval 1511.

Example: Fiber extended diffusors with different lengths
Example: Fiber extended diffusors with different lengths
Fiber length Measuring range Illuminance (Illuminant A) Part number for specbos 1211-2 Part number for specbos 1211-UV-2
0.35 m 3 ... 1.500.000 lx ACC 015-035 ACC 015UV-035
1.00 m 3 ... 1.500.000 lx ACC 015-100 ACC 015UV-100
3.00 m 3 ... 1.500.000 lx ACC 015-300 -
5.00 m 3 ... 1.500.000 lx - ACC 015UV-500

Fiber length Measuring range Illuminance (Illuminant A) Part number for spectraval 1501 and spectraval 1511
0.35 m 1 ... 800 000 lx ACC 034-035
1.00 m 1 ... 800 000 lx ACC 034-100
3.00 m 1 ... 800 000 lx ACC 034-300
5.00 m 1 ... 800 000 lx ACC 034-500

It is also possible to combine a fiber extended diffusor with an adapter with OD filter to shift the measuring range (ODx.x) or with any other filter.

Part number of adapter: ACC 021 ODx.x
