Diffusors with Attenuation Filter for JETI Specbos

Article number: ACC 013 OD, ACC 076 OD

Device: specbos 2511, specbos 2501, specbos 1211-2

The measuring range of specbos 2511, specbos 2501, specbos 2501-UV, specbos 1211-2 and specbos 1211-UV-2 for Illuminance mode measurements is given in the datasheet. It is possible to order special diffusors with added filters to shift the measuring range towards higher Illuminance values.

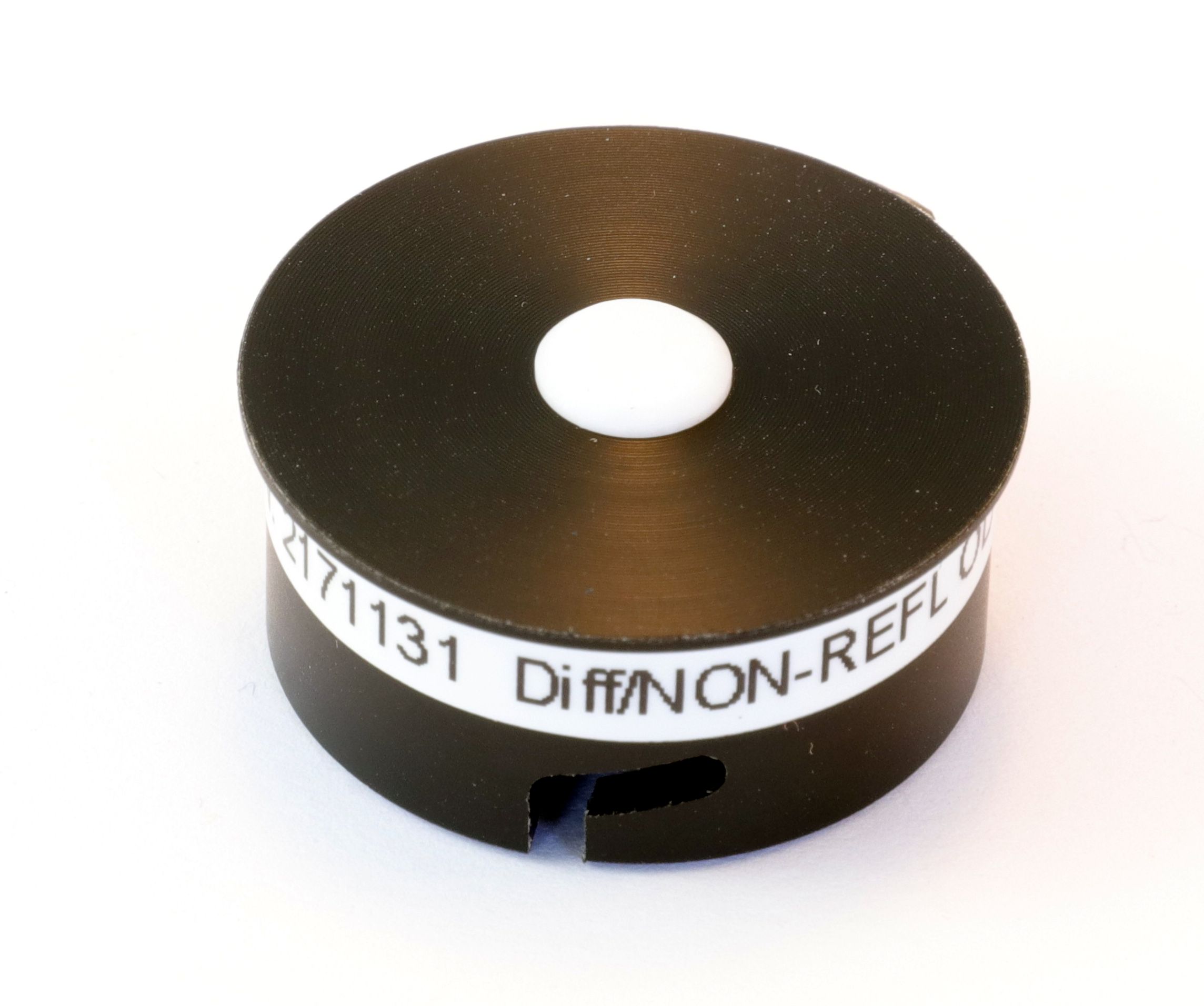

Diffusor with attenuation filter

JETI specbos 1211-UV-2 equipped with diffusor with attenuation filter

Filter type*	Measuring range Illuminance (Illuminant A)	specbos 2511 / 2501	specbos 2511-UV / 2501-UV	specbos 1211-2	specbos 1211-UV-2
OD 0.5	1 ... 900 000 lx	ACC 076 ODx.x	ACC 076UV ODx.x	ACC 013OD0.5	ACC 013UVOD0.5
OD 1.0	2 ... 1 800 000 lx	ACC 076 ODx.x	ACC 076UV ODx.x	ACC 013OD1.0	ACC 013UVOD1.0

*Filter type:** OD 0.5	Measuring range Illuminance (Illuminant A): 1 ... 900 000 lx	Part number for specbos 2511 / 2501: ACC 076 ODx.x	Part number for specbos 2511-UV / 2501-UV: ACC 076UV ODx.x	Part number for specbos 1211-2: ACC 013OD0.5	Part number for specbos 1211-UV-2: ACC 013UVOD0.5
*Filter type:** OD 1.0	Measuring range Illuminance (Illuminant A) 2 ... 1 800 000 lx	Part number for specbos 2501 ACC 076 ODx.x	Part number for specbos 2501-UV ACC 076UV ODx.x	Part number for specbos 1211-2 ACC 013OD1.0	Part number for specbos 1211-UV-2 ACC 013UVOD1.0

* Others on request
