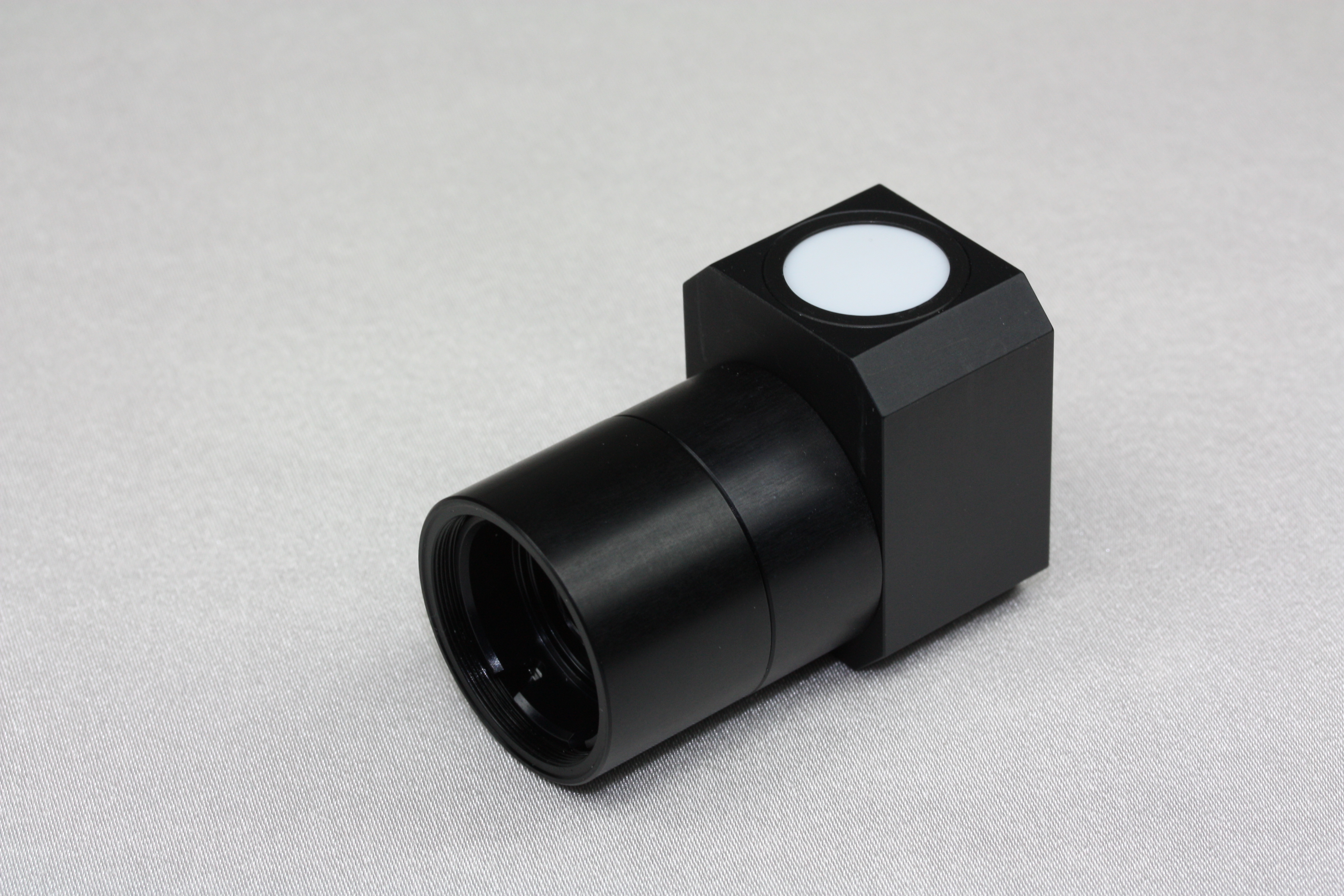

90° diffusor

with and without integrated OD filter for VIS/NIR/UV
Article number: ACC 012, ACC 012UV, ACC 032/90°
Device: specbos 2501, specbos 1211-2, spectraval 1511, spectraval 1501
The standard diffusor of specbos 2501, specbos 1211-2, spectraval 1501 and spectraval 1511 allows Irradiance measurements in axis to the device. There exist applications where this restricted set up cannot be used, e.g. if it is necessary to measure the Irradiance near a certain surface. The 90° diffusor allows to measure perpendicular to the instrument.

The 90° diffusor is available in different versions for all JETI spectroradiometers.

90° diffusor: f2 < 3 % (class B)


90° diffusor
90° diffusor

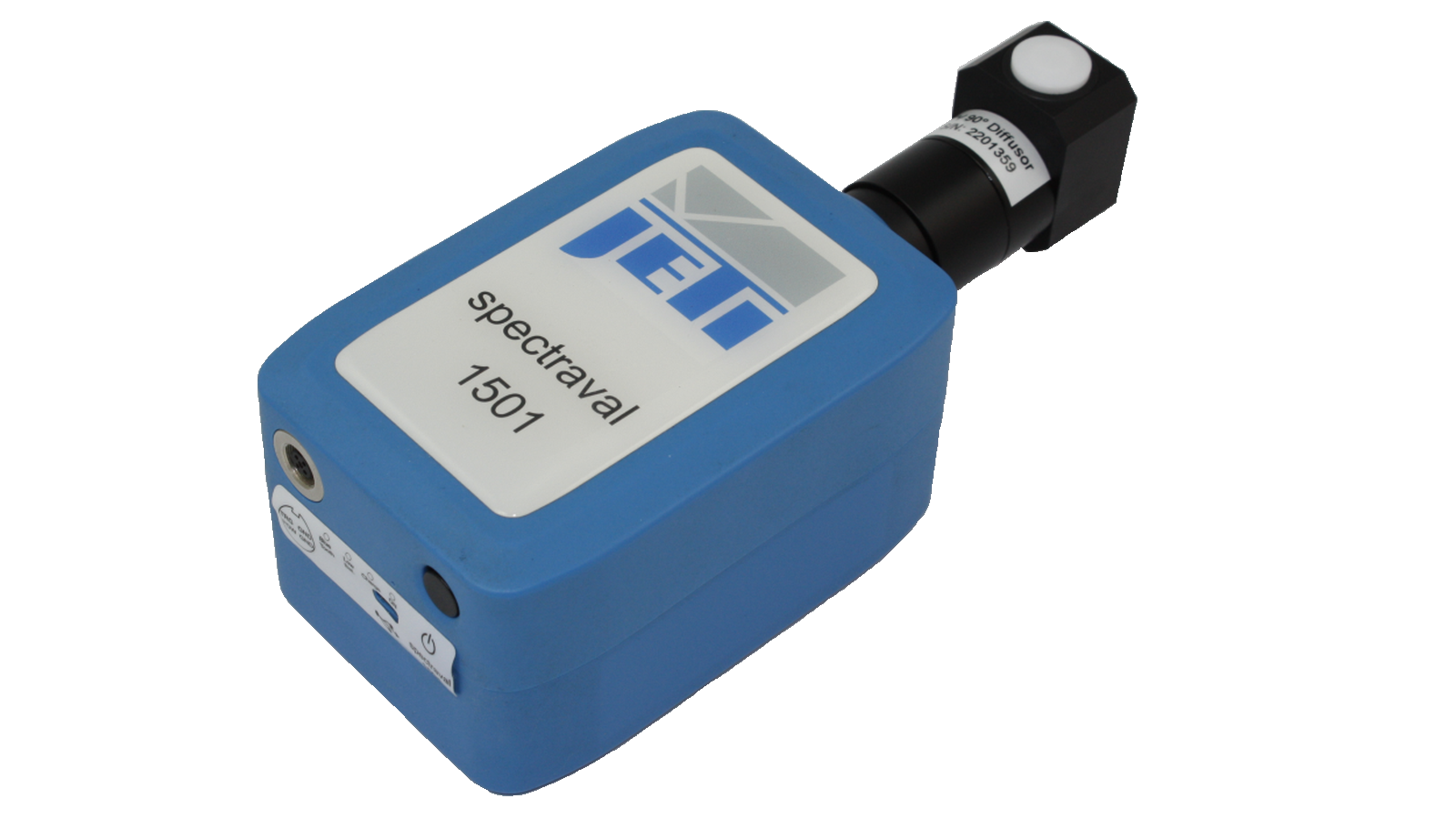

JETI spectraval 1501 equipped with 90° diffusor
JETI spectraval 1501 equipped with 90° diffusor

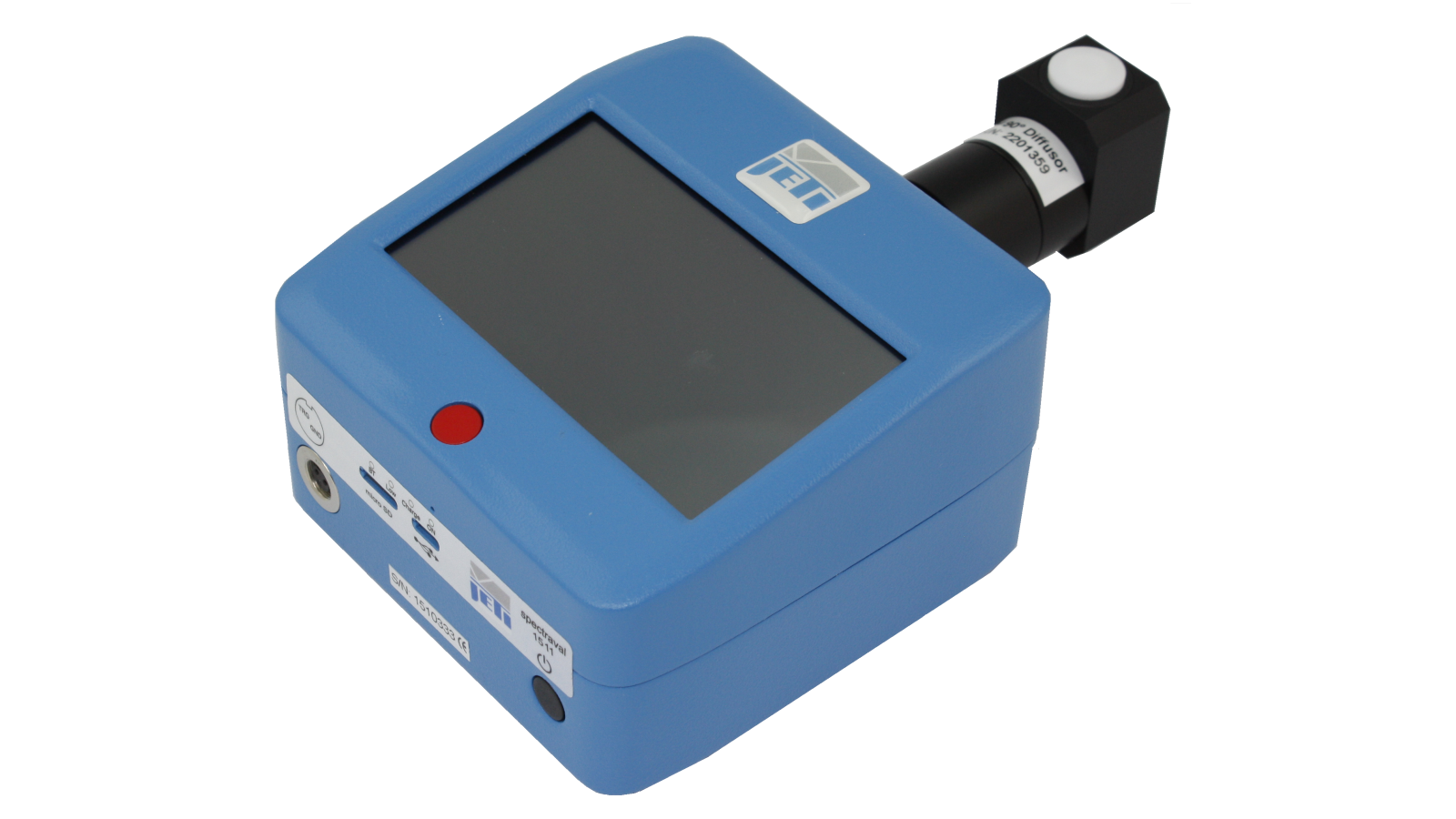

JETI spectraval 1511 equipped with 90° diffusor
JETI spectraval 1511 equipped with 90° diffusor

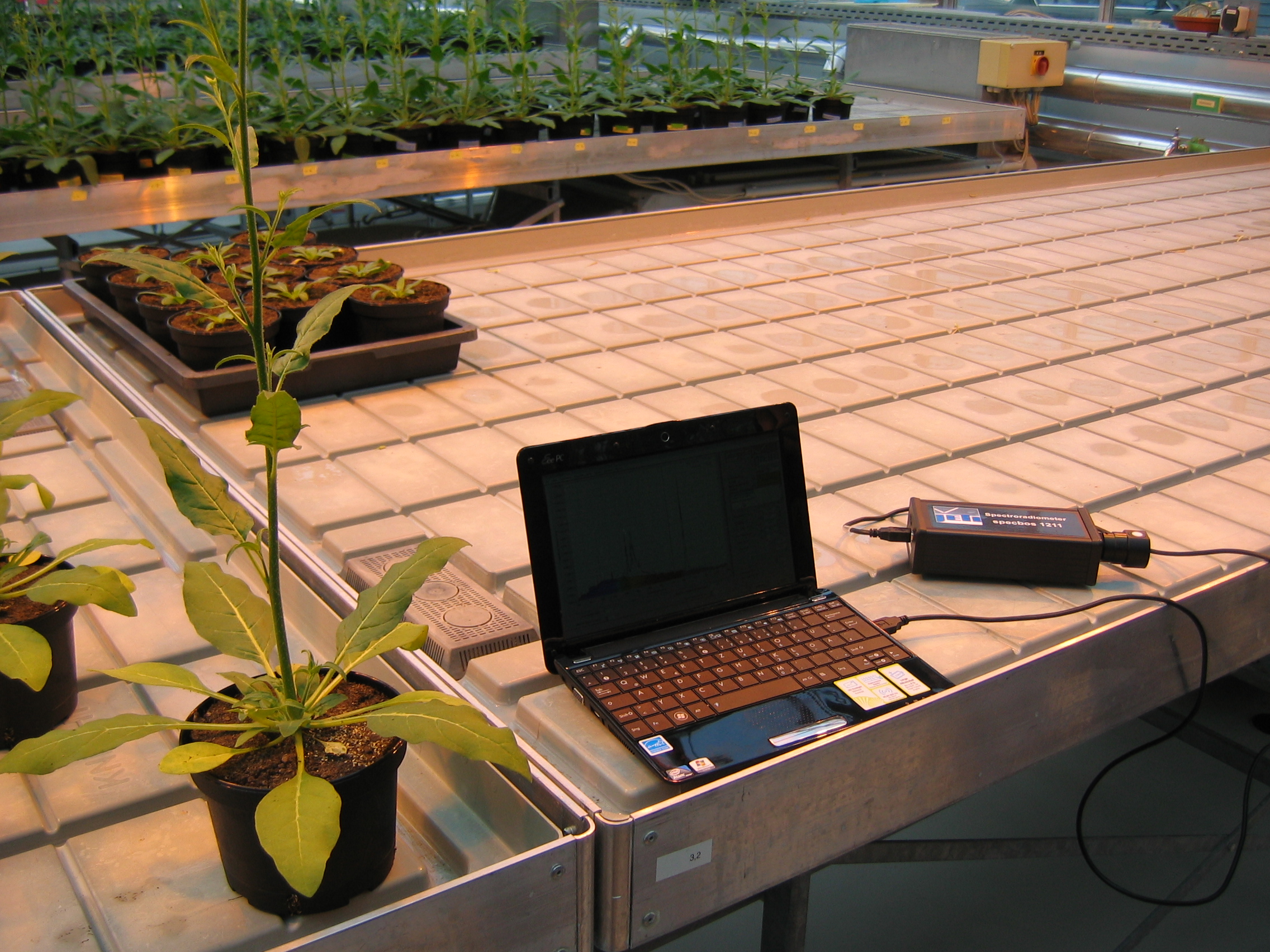

JETI specbos 1211-UV-2 equipped with 90° diffusor
JETI specbos 1211-UV-2 equipped with 90° diffusor

90° Diffusor for spectroradiometer JETI specbos 2501
 Filter type* Measuring range Illuminance (Illuminant A) Part number for specbos 2501 Part number for specbos 2501-UV
 without   3 ... 1 500 000 lx  ACC 012/3  ACC 012UV/3
 OD1.0   30 ... 15 000 000 lx  ACC 012/3 OD1.0  ACC 012UV/3 OD1.0
 Filter type*: without Measuring range Illuminance (Illuminant A):
 3 ... 1 500 000 lx		 Part number for specbos 2501:
 ACC 012/3		 Part number for specbos 2501-UV:
 ACC 012UV
 Filter type*: OD1.0 Measuring range Illuminance (Illuminant A):
 30 ... 15 000 000 lx		 Part number for specbos 2501:
ACC 012/3 OD1.0		 Part number for specbos 2501-UV:
ACC 012UV/3 OD1.0

*Other neutral density filters on request

90° Diffusor for spectroradiometer JETI specbos 1211 and 1211-2
 Filter type* Measuring range Illuminance (Illuminant A) Part number for specbos 1211-2 Part number for specbos 1211-UV-2
 without   3 ... 1 500 000 lx   ACC 012   ACC 012UV
 OD1.0   30 ... 15 000 000 lx  ACC 012 OD1.0  ACC 012UV OD1.0
 Filter type*: without Measuring range Illuminance (Illuminant A):
 3 ... 1 500 000 lx		 Part number for specbos 1211-2:
 ACC 012		 Part number for specbos 1211-UV-2:
 ACC 012UV
 Filter type*: OD1.0 Measuring range Illuminance (Illuminant A):
 30 ... 15 000 000 lx		 Part number for specbos 1211-2:
ACC 012 OD1.0		 Part number for specbos 1211-UV-2:
ACC 012UV OD1.0

*Other neutral density filters on request

90° Diffusor for spectroradiometer JETI spectraval 1501 and 1511
Filter type* Measuring range Illuminance (Illuminant A) Part number for spectraval 1501 and spectraval 1511  Part number for spectraval 1501-NIR and spectraval 1511-NIR
without  3 ... 800 000 lx  ACC 032/90°  ACC 032/90°
OD1.0  30 ... 8 000 000 lx ACC 032/90° OD1.0 ACC 032/90°OD1.0
 Filter type*: without Measuring range Illuminance (Illuminant A):
 3 ... 800 000 lx		 Part number for spectraval 1501 and spectraval 1511
 ACC 032/90°		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 032/90°
 Filter type*: OD1.0 Measuring range Illuminance (Illuminant A):
 30 ... 8 000 000 lx		 Part number for spectraval 1501 and spectraval 1511
ACC 032/90° OD1.0		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
ACC 032/90°OD1.0

*Other neutral density filters on request
