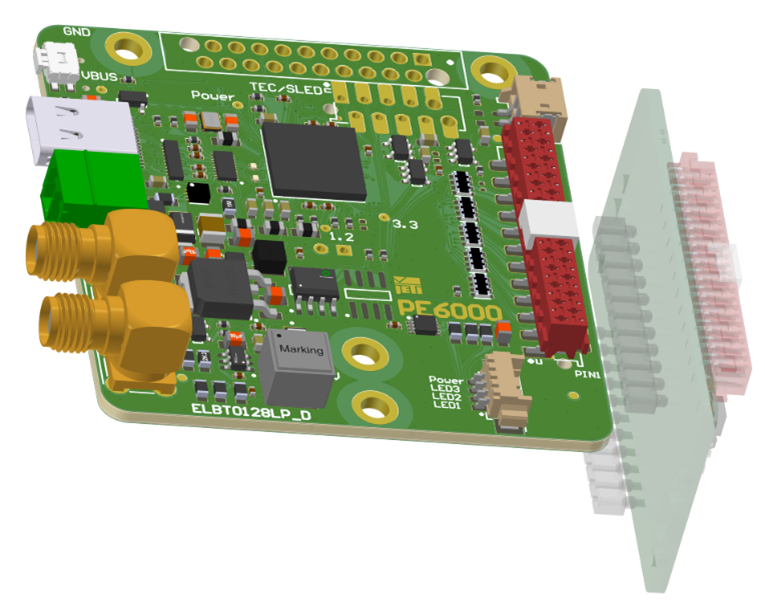

SuperSpeed spectrometer electronics for highest speed applications

• Processor
  MCU - FPGA combination
• Speed
  34k Spectra/s for 256pix
• Communication
  USB 3.2 Gen 1
• Features
  Trigger-IN, Trigger-OUT, 3x status LED, USB-PD 3A/5V, 6-28V external Supply
• Optional
  LED/SLED Driver and Peltier regulation as TEC-S add-on board

• Dimensions
  Main board: 56mm x 58mm x 14mm

• Supported image sensors:
  G11620 series (InGaAs)
  S11639/S13496/S165xx series (CMOS- planned)
  G14714 series (InGaAs - planned)
  Others on request



Read more

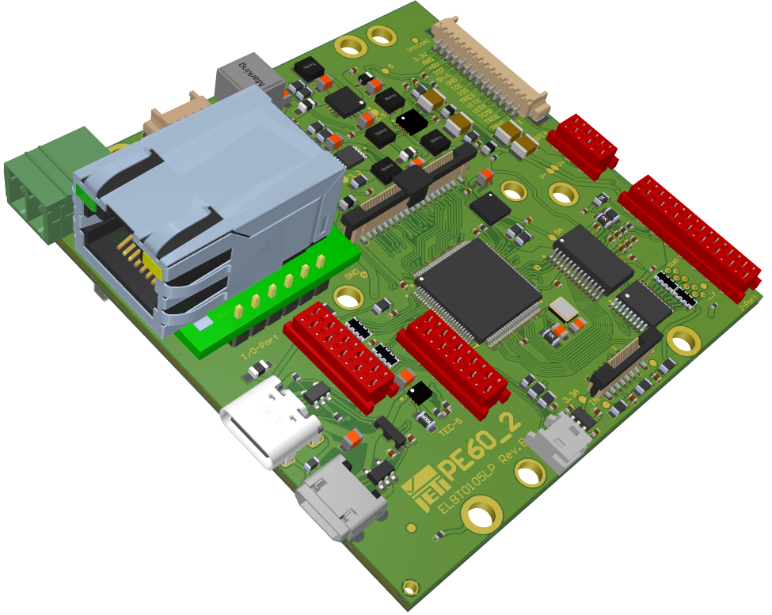

Readout electronics for high speed, process-control and multichannel applications

• Processor
  252 MHz - 32 bit MCU
• Speed
  up to 10 MS/s 16-bit ADC
• Communication
  USB 2.0 high speed, Ethernet, TTL-UART, SPI, RS422/485
• HW-Features
  Trigger, Shutter/Lamp, 8(16) GPIO and 3 analog Input pins
• Optional
  Thermoelectric cooler and led source populated as TEC-S add-on board, 6-28V external supply

• Dimensions
  Main board: 70 mm x 70 mm x 20 mm
  TEC-S board: 36 mm x 36 mm x 7 mm
• Supported image sensors:
  S16514, S13496, S11639 (CMOS)
  G13913 (InGaAs mini)
  G11620, G11608, G92xx, … (uncooled InGaAs)
  G11620, G11508, G1147x, G92xx, … (cooled InGaAs)
  S14650/60, S1115x, S11071, S10420, S10140, S7030, … (BTCCD)
  S14651/61, S1325x, S11850, S10141, S7031, … (cooled BTCCD)
  Others on request

Read more

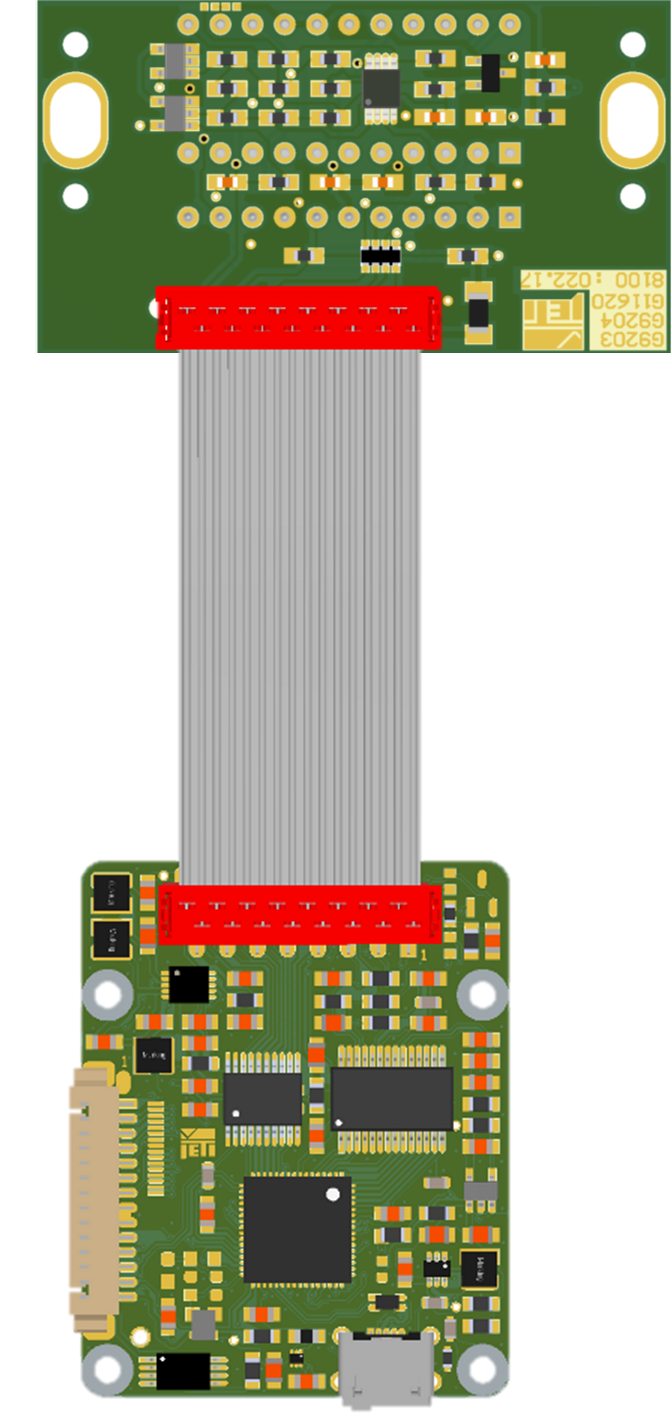

Tiny solution for a variety of sensors in mobile or general applications

• Processor
  96 MHz - 32 bit MCU
• Speed
  up to 5 MS/s 16-bit ADC
• Communication
  USB 2.0 high speed, TTL-UART, SPI
• HW-Features
  Trigger, Shutter/Lamp and 3(8) GPIO pins
• Optional
  Thermoelectric cooler and led source populated as TEC-S add-on board
• Dimensions
  Main board: 36 mm x 45 mm x 10 mm
  TEC-S board: 36 mm x 36 mm x 7 mm

• Supported image sensors:
  S16514, S13496, S11639, S837x, … (CMOS)
  S838x, S390x… (NMOS) (one board version available)
  G13913 (InGaAs mini)
  G11620, G92xx, … (uncooled InGaAs)
  G11620, G11508, G1147x, G92xx,... (cooled InGaAs)
  S14650/60, S1115x, S10420, S10140, S7030, … (BTCCD)
  S14651/61, S1325x, S11850, S10141, S7031, … (cooled BTCCD)
  Others on request

Read more

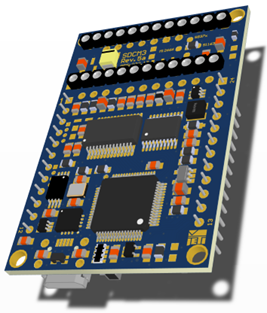

Economic one board solution, which can be extended to a standalone BT-Device

• Processor
  96 MHz - 32 bit microprocessor
• Speed
  16 bit 5 MS/s ADC
• Interfaces
  USB 2.0 full speed, TTL-UART, SPI (LAN, Bluetooth add-on board)
• Serial
  Trigger; Shutter/Lamp and 8 GPIO pins
  User accessible nonvolatile memory of 64 kB

• Optional
  microSD card; real time clock / calendar (RTCC); Li-ion battery powered
• Dimensions
  Main board: 36 mm x 53 mm x 15 mm
  Add-on board: 36 mm x 53 mm x 12 mm
• Supported image sensors:
  CMOS | S11639, S13496x, S8378
  InGaAs | G11620
  micro-spectrometer | C12880MA, …

Read more
