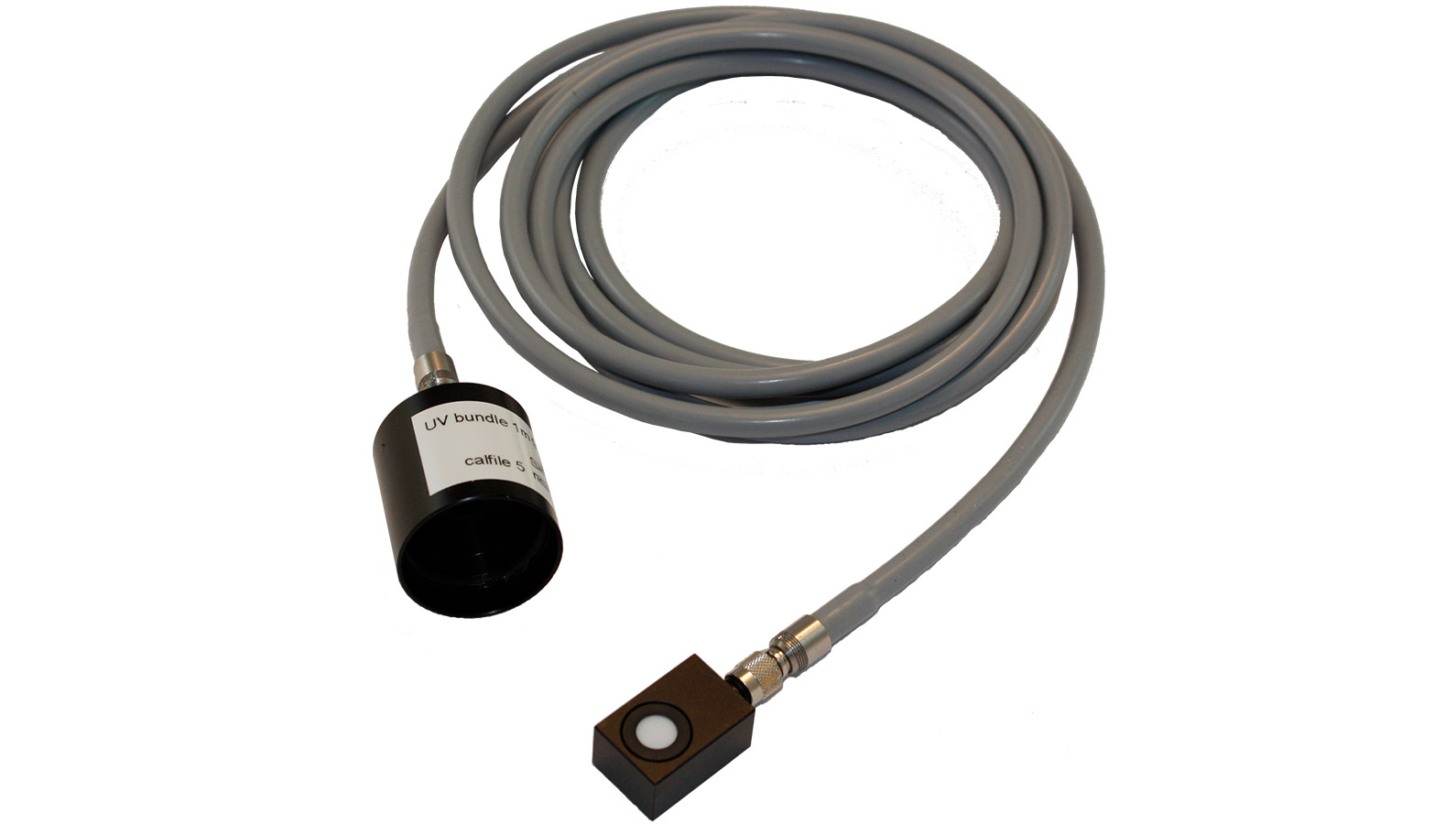

90° remote diffusor

Article number: ACC 019, ACC 035, ACC 074
Device: specbos 2511, specbos 2501, specbos 1211-2, spectraval 1511,  spectraval 1501
The 90° remote diffusor of specbos and spectraval spectroradiometer measure the spectral Irradiance and Illuminance. This diffusor is the combination of a 90° diffusor and a fiber extended diffusor. Therefore, it is an accessory which allows the measurements perpendicular to the spectroscopy instrument at difficult accessible locations or where the space is limited. The standard length of the fiberoptic cable is 1 m.

This accessory is available for JETI specbos 2511, specbos 2501, specbos 1211-2, spectraval 1501 and spectraval 1511.

Specifications:
  • 90° remote diffusor: f2 < 5% (class C)
  • Dimensions of the diffusor head: 24 mm x 15 mm x 13 mm (Length/Width/Height)
  • Available lengths: 35 cm, 100 cm, 200 cm, 300 cm, 500 cm. Other lengths on request.


90° remote diffusor

90° remote diffusor
90° diffusor for spectroradiometer JETI specbos 2501
Fiber lenght Measuring range Illuminance (Illuminant A) Part number for specbos 2511 / 2501 Part number for specbos 2511-UV / 2501-UV
0.35 m 1.5 ... 1 000 000 lx  ACC 074-035  ACC 074UV-035
1.00 m 1.5 ... 1 000 000 lx  ACC 074-100  ACC 074UV-100
2.00 m 1.5 ... 1 000 000 lx  ACC 074-200  ACC 074UV-200
3.00 m 1.5 ... 1 000 000 lx  ACC 074-300  ACC 074UV-300
5.00 m 1.5 ... 1 000 000 lx  ACC 074-500  ACC 074UV-500
 Fiber lenght: 0.35 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 2511 / 2501: ACC 074-035 Part number for specbos 2511-UV / 2501-UV: ACC 074UV-035
 Fiber lenght: 1.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 2511 / 2501: ACC 074-100 Part number for specbos 2511-UV / 2501-UV: ACC 074UV-100
 Fiber lenght: 2.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 2511 / 2501: ACC 074-200 Part number for specbos 2501-UV: ACC 074UV-200
 Fiber lenght: 3.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 2511 / 2501: ACC 074-300 Part number for specbos 2511-UV / 2501-UV: ACC 074UV-300
 Fiber lenght: 5.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 2511 / 2501: ACC 074-500 Part number for specbos 2511-UV / 2501-UV: ACC 074UV-500



Diffusor for spectroradiometer JETI specbos 1211 and 1211-2
Fiber lenght Measuring range Illuminance (Illuminant A) Part number for specbos 1211-2 Part number for specbos 1211-UV-2
0.35 m 1.5 ... 1 000 000 lx  ACC 019-035  ACC 019UV-035
1.00 m 1.5 ... 1 000 000 lx  ACC 019-100  ACC 019UV-100
2.00 m 1.5 ... 1 000 000 lx  ACC 019-200  ACC 019UV-200
3.00 m 1.5 ... 1 000 000 lx  ACC 019-300  ACC 019UV-300
5.00 m 1.5 ... 1 000 000 lx  ACC 019-500  ACC 019UV-500
 Fiber lenght: 0.35 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 1211-2: ACC 019-035 Part number for specbos 1211-UV-2: ACC 019UV-035
 Fiber lenght: 1.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 1211-2: ACC 019-100 Part number for specbos 1211-UV-2: ACC 019UV-100
 Fiber lenght: 2.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 1211-2: ACC 019-200 Part number for specbos 1211-UV-2: ACC 019UV-200
 Fiber lenght: 3.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 1211-2: ACC 019-300 Part number for specbos 1211-UV-2: ACC 019UV-300
 Fiber lenght: 5.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for specbos 1211-2: ACC 019-500 Part number for specbos 1211-UV-2: ACC 019UV-500



Diffusor for spectroradiometer JETI spectraval 1501 and 1511
Fiber lenght Measuring range Illuminance (Illuminant A) Part number for spectraval 1501 and spectraval 1511 Part number for spectraval 1501-NIR and spectraval 1511-NIR
0.35 m 1.5 ... 1 000 000 lx  ACC 035-035  ACC 035-035
1.00 m 1.5 ... 1 000 000 lx  ACC 035-100  ACC 035-100
2.00 m 1.5 ... 1 000 000 lx  ACC 035-200  ACC 035-200
3.00 m 1.5 ... 1 000 000 lx  ACC 035-300  ACC 035-300
5.00 m 1.5 ... 1 000 000 lx  ACC 035-500  ACC 035-500
 Fiber lenght: 0.35 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 035-035		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 035-035
 Fiber lenght: 1.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 035-100		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 035-100
 Fiber lenght: 2.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 035-200		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 035-200
 Fiber lenght: 3.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 035-300		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 035-300
 Fiber lenght: 5.00 m Measuring range Illuminance (Illuminant A):
1.5 ... 1 000 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 035-500		 Part number for spectraval 1501-NIR and spectraval 1511-NIR:
 ACC 035-500
