RU60

Broadband spectrometer

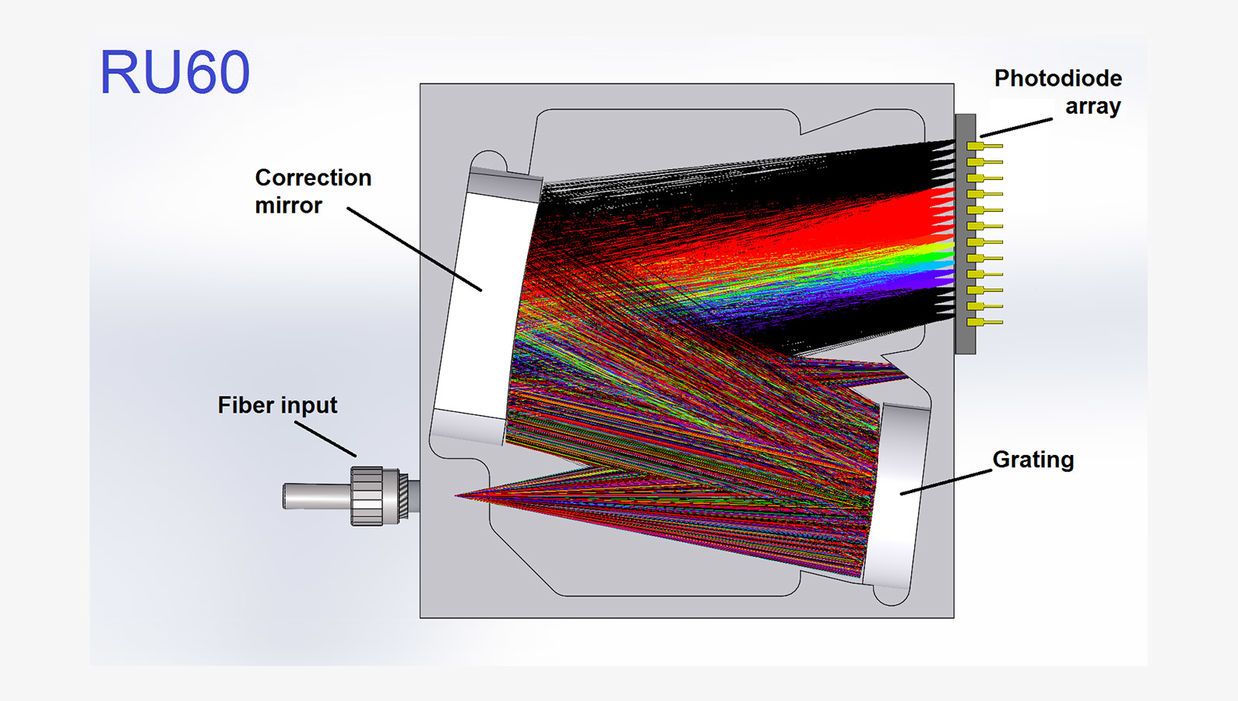

[Discontinued in December 2024. Support and repair on request] The JETI broadband OEM spectrometer RU60 is a flat field spectrograph combined with a powerful processing electronics. It can be used for precise spectroscopic measurements, where a good linearity and a high optical resolution is needed. It includes an imaging grating and a correction mirror. RU60 is available with and without mechanical shutter.

The spectrometer can be operated with the intuitive measuring software JETI VersaSpec.

Main characteristics of RU60

• High quality image with very low aberrations over the whole spectral range
• High dynamic range
• High sensitivity in VIS, UV and IR
• Compact design

Advantages

• Very low astigmatism
• Can easily be integrated into customer systems and implement in customer specific designs
• Processing of spectral calculations
• SCPI compatible control syntax

Controller functions

• Internal storage of wavelength pixel relation
• Preprocessing of data, dark signal correction, absolute calibration
• Internal calculations like averaging, interpolation, transmission, reflexion, absorption, color coordinates
• Dedicated control syntax (SCPI compliant)
