Fast diffusors

for lower Irradiance

Article number: ACC 013, ACC 032
Device: specbos 2501, specbos 1211-2, spectraval 1511, spectraval 1501


A diffusor with increased transmission has a higher error in cosine matching, but there exist applications where this can be tolerated. One example is the measurement of point like sources as vehicle lamps in a longer distance. Therefore, two modified diffusors are offered as accessory for specbos 2501, specbos 1211-2, spectraval 1501 and spectraval 1511 - a version with medium transmission and a version with high transmission.



The transmission of the medium version is 20 times higher and the transmission of the high version is 60 times higher than that of the standard diffusor version.

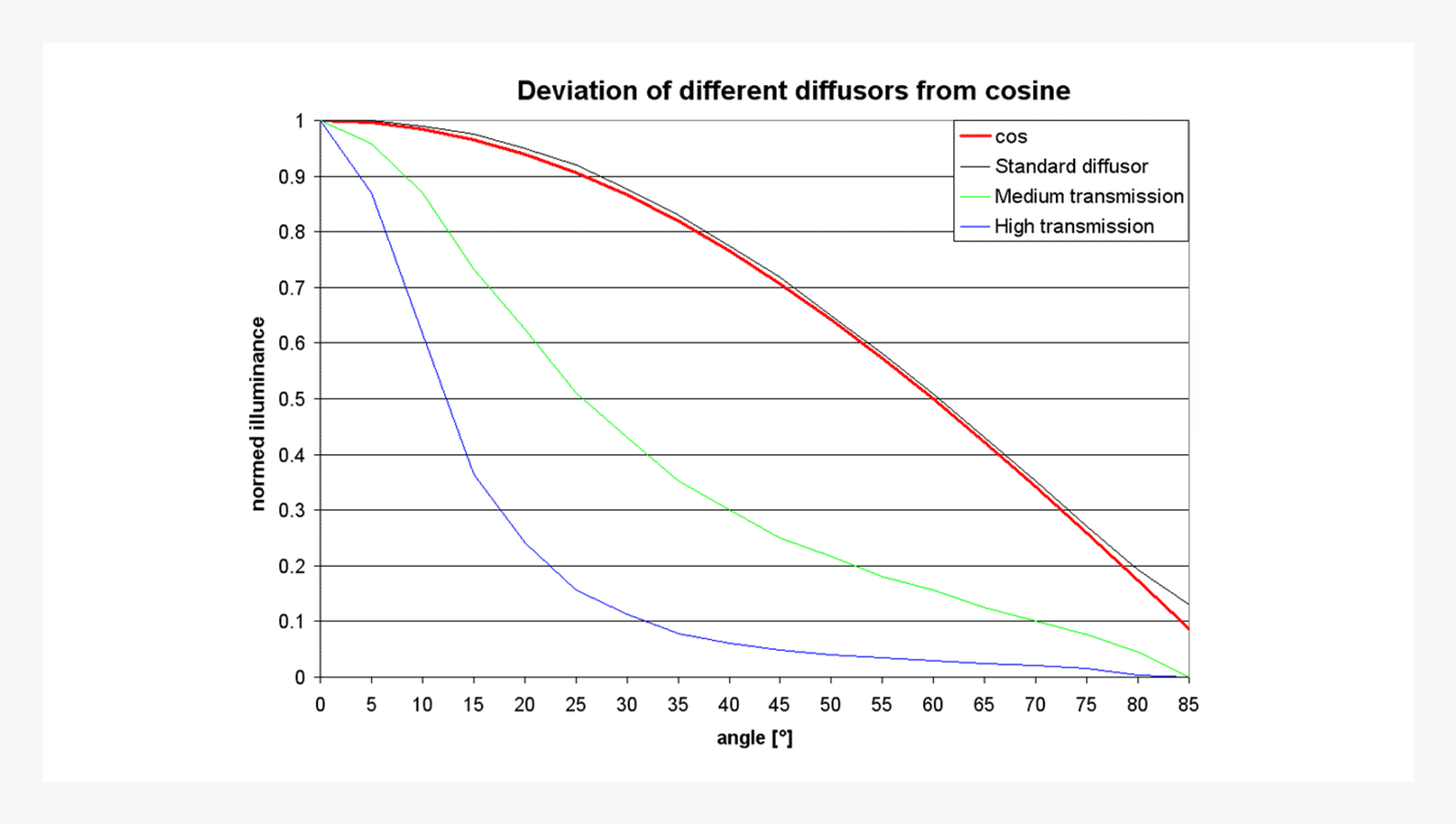

Angular behavior of the medium and high transmission type compared to the standard version
Angular behavior of the medium and high transmission type compared to the standard version



 Diffusor for spectroradiometer JETI specbos
Diffusor type  Measuring range Illuminance (Illuminant A) Part number for specbos 2501 | specbos 1211-2 Part number for specbos 2501-UV | 1211-UV-2
Medium transmission  0.05 ... 30 000 lx  ACC 013/3 Med | ACC 013Med   No special version available
High transmission  0.02 ... 12 000 lx  ACC 013/3 High | ACC 013High   No special version available
Diffusor type: Medium transmission Measuring range Illuminance (Illuminant A):
 0.05 ... 30 000 lx		 Part number for specbos 2501 | 1211-2:
 ACC 013/3 Med | ACC 013Med		 Part number for specbos 2501-UV | 1211-UV-2:
  No special version available
 Diffusor type: High transmission      Measuring range Illuminance (Illuminant A):
 0.02 ... 12 000 lx		 Part number for specbos 2501 | 1211-2:
 ACC 013/3 High | ACC 013High		 Part number for specbos 2501-UV | 1211-UV-2:
  No special version available


Please note:
If you want to order such diffusor for a device, which was manufactured before 2019, please add the serial number and the desired measuring range to your request.

 Diffusor for spectroradiometer JETI spectraval
Diffusor type Measuring range Illuminance (Illuminant A) Part number for spectraval 1501 and spectraval 1511
Medium transmission  0.05 ... 25 000 lx  ACC 032Med
High transmission       0.02 ... 10 000 lx  ACC 032High
 Diffusor type: Medium transmission Measuring range Illuminance (Illuminant A):
 0.05 ... 25 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 032Med
 Diffusor type: High transmission      Measuring range Illuminance (Illuminant A):
 0.02 ... 10 000 lx		 Part number for spectraval 1501 and spectraval 1511:
 ACC 032High
