DE50

Broadband OEM spectrometer

The new JETI broadband OEM spectrometer DE50 is a flat field spectrograph combined with powerful processing electronics. It is available in two versions: DE50 basic and DE50 expert.

JETI DE50 is designed for a wide range of applications. Its broad spectral range makes it suitable for applications in industrial process monitoring, integration into automated measurement systems and optical quality control.

The spectrometer can be operated with the intuitive measuring software JETI VersaSpec.

DE50 home

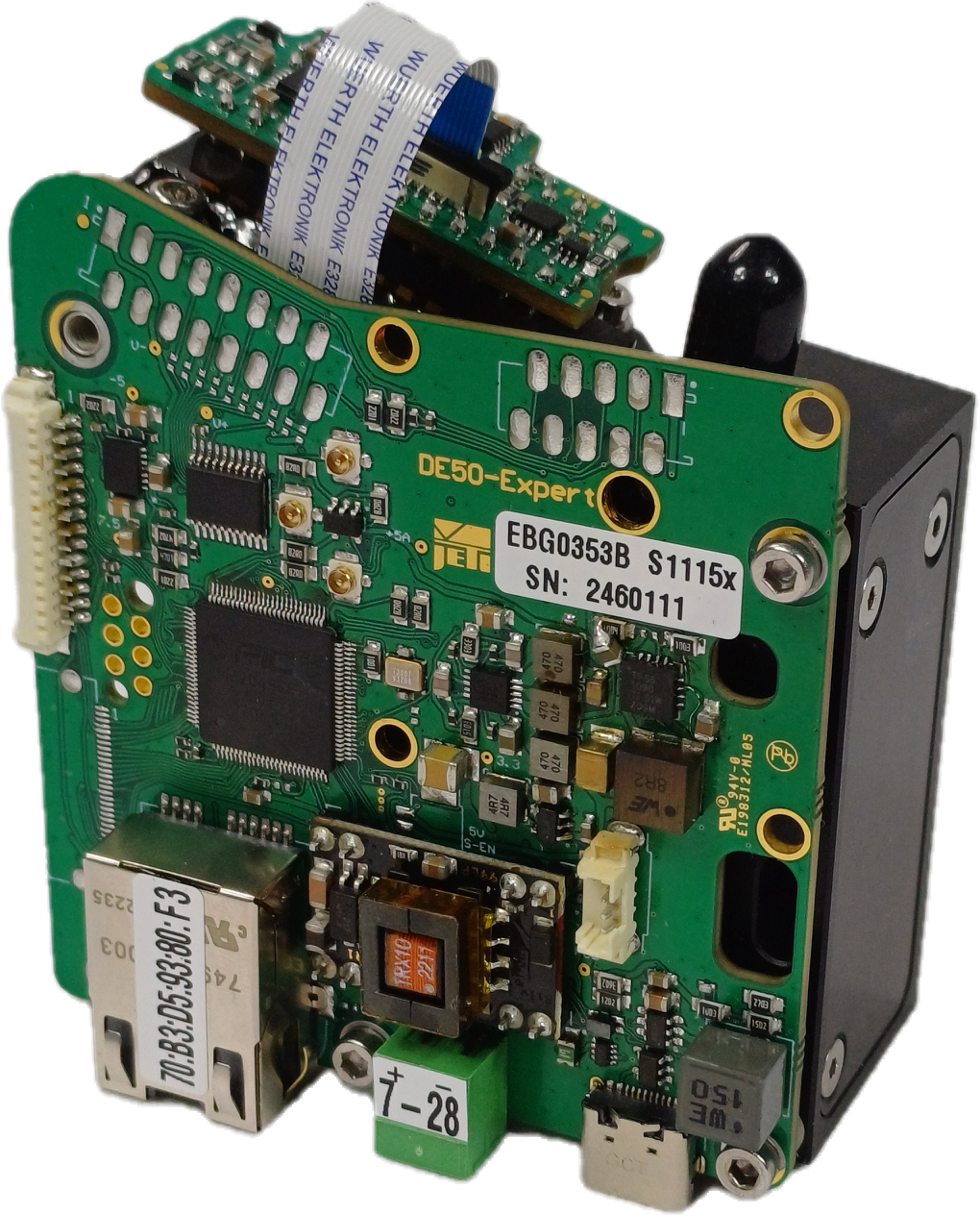

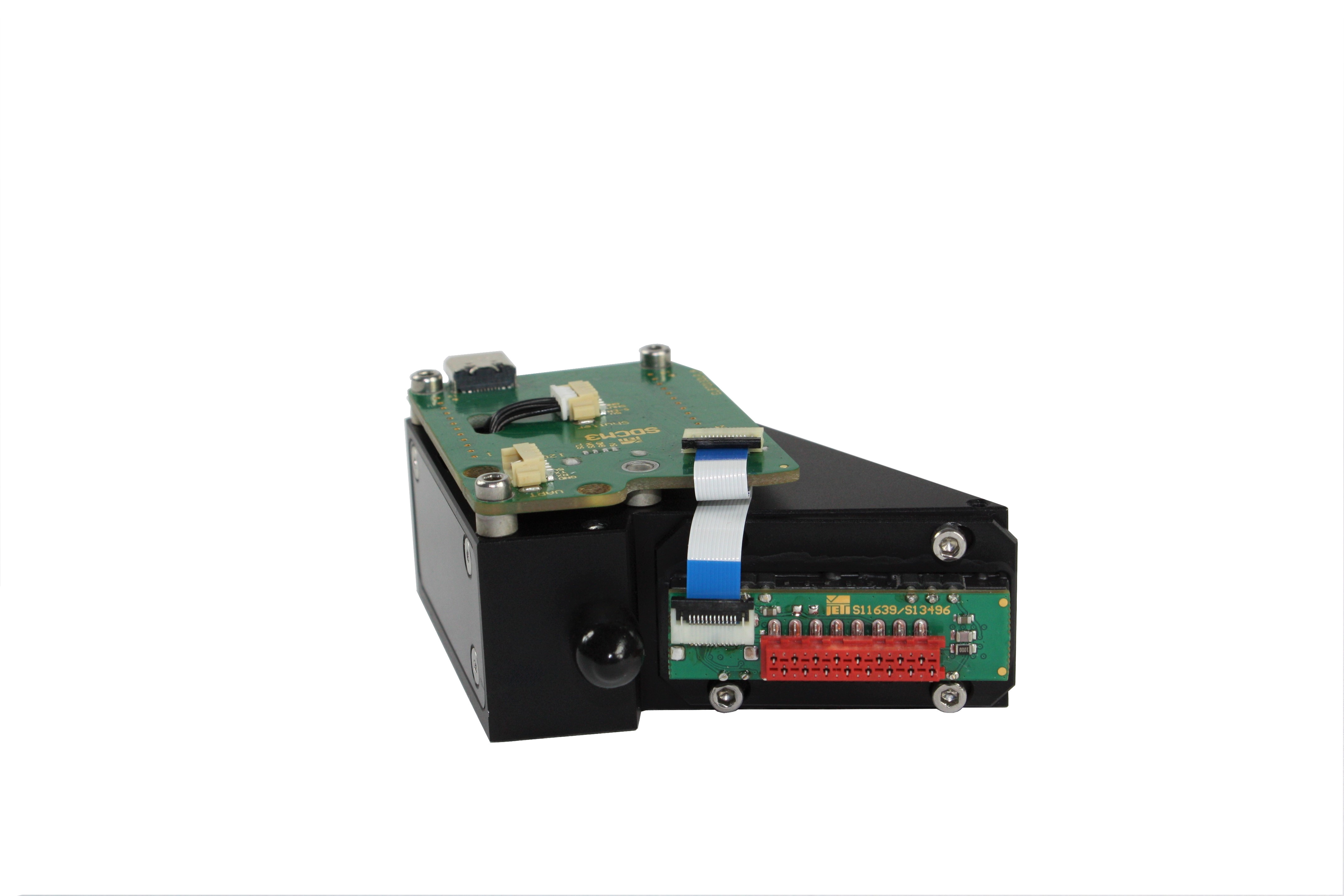

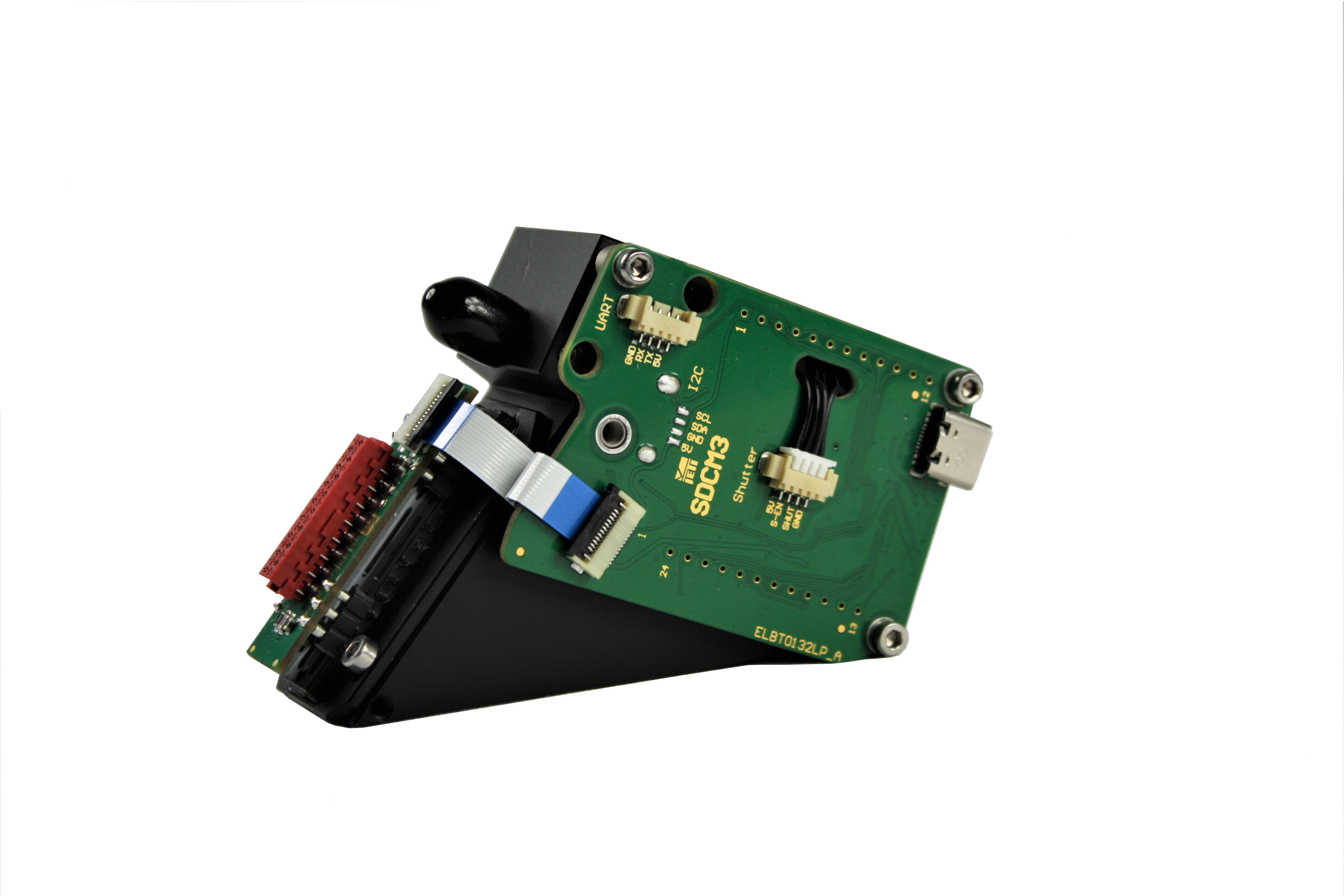

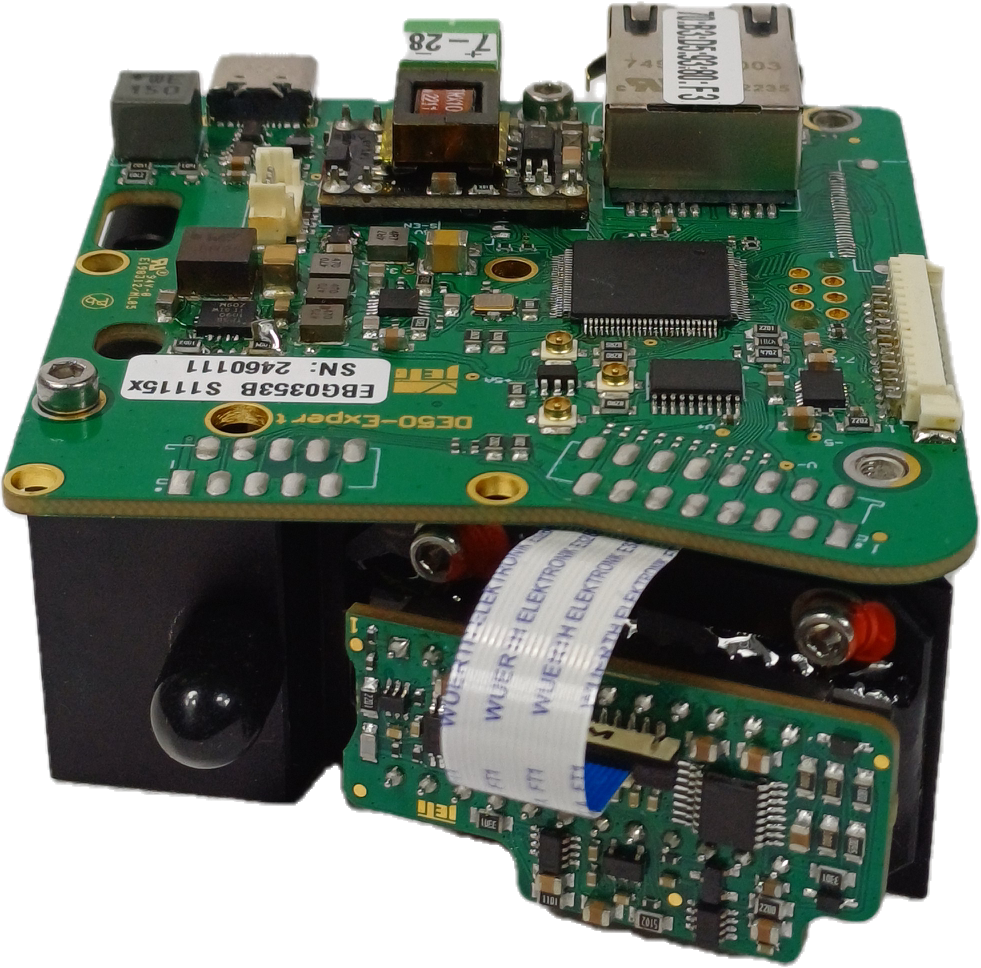

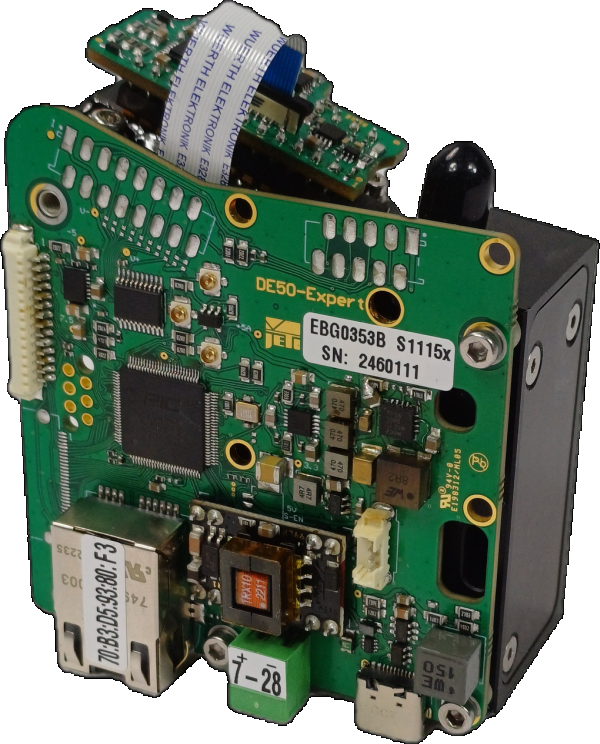

JETI spectrometer DE50

Main characteristics of DE50
  • Wavelength range 200 ... 1100 nm (DE50 expert)
  • Wavelength range 350 ... 1000 nm (DE50 basic)
  • High optical resolution over the whole spectral range
  • High sensitivity in UV, VIS and NIR spectral ranges
  • High dynamic range
  • Compact design
  • Easy integration into customer systems
  • Optional mechanical shutter
Applications
  • Ellipsometry
  • Plasma physics
  • Colorimetry/ Spectroradiometry
  • Biochemistry
  • Analytical instrumentation
  • Thickness measurement
  • Online analyzer
  • Fluorescence spectroscopy
  • In process measurement of interference layers
Controller functions
  • Internal storage of wavelength-pixel relation
  • Preprocessing of data, dark signal correction, absolute calibration
  • Internal calculations like averaging, interpolation, transmission, reflexion, absorption, color coordinates
  • Dedicated control syntax (SCPI compliant)
Advantages
  • Very low astigmatism
  • Low stray light
  • Hard- and software trigger
  • Onboard Ethernet Interface (DE50 expert)
  • Processing of spectral calculations
Optical parameters
  • Spectral range:
    • 200 … 1100 nm (DE50 expert)
    • 350 ... 1000 nm (DE50 basic)

  • Optical resolutions
    • ≤ 4 nm FWHM (50 µm slit)
    • optionally ≤ 2.0 nm FWHM VIS (20 µm slit),  other slit sizes on request
  • Max. wavelength error:
    • ± 0.3 nm (HgAr line source)

  • Stray light:
    •  < 0.1 % (ASTM E387, GG495, λ = 420 nm/ 600 nm)

  • Optical input:
    • F-SMA connector for 200 µm fiber
Electronic parameters
  • ADC resolution: 16 bit
  • Gain: 1 ... 5 programmable in 64 steps
  • Offset: External compensation or programmable up to +/- 300 mV
  • mechanical Shutter: Integrated (DE50 expert), delay <10ms (optional)
DE50 basic
  • USB powered, 5V DC
  • Interfaces: USB-C, UART
  • Sensor: S11639
DE50 expert
  • USB powered, 7-28V DC or POE
  • Interfaces: USB-C, UART, 100 Mbit/s Ethernet
  • Trigger: 1 x IN, 2 x OUT
  • Sensor: S11155/56 (others on request)
  • Peltier cooling and LED-Driver Addon-Board (on request)
  • 3 GPIO-Pins (more on request)



Fiber optic cables
Fiber Optic Cables (both sides terminated by SMA connectors) are available for all JETI spectrometers. The normal flexible cable has a length of 1 m. Additionally, a nonflexible version with a length of 10 cm is offered.


Fiber coupled diffusor
The optical fibers can be combined with a fiber coupled diffusor to convert the spectrometers into Irradiance meters. A suited calibration is optionally available.
