Discontinued devices and readout electronics


Here you'll find informations of all JETI's discontinued devices and readout electronics

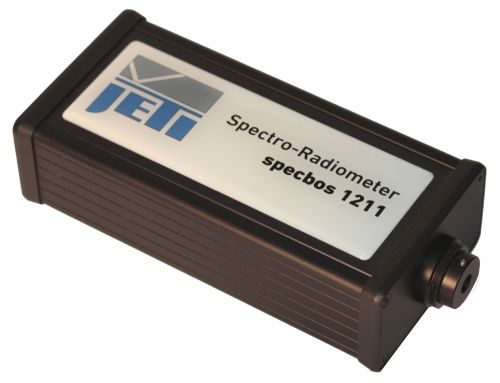

specbos 1211 / 1211-2

JETI spectroradiometer specbos 1211
UV | VIS | NIR
  • Produced from 2012 to 2024.
  • Calibration: Possible.
  • Repair: Posssible.
Datasheet
iconPDFspecbos 1211-2 (548.44 KB)


Read more
  • Wavelength range: 350 nm ... 1000 nm / 230 nm ... 1000 nm (1211-UV-2)
  • Spectral resolution: ≤ 4.5 nm
  • Interfaces:
    USB 2.0 fullspeed, Bluetooth (specbos 1211-BT-2)
    RS232 (specbos 1211-2-RS), LAN (specbos 1211-LAN-2)
  • Applications specbos 1211-2:
    Please see datasheet.
  • Applications specbos 1211-UV-2:
    Please see datasheet.

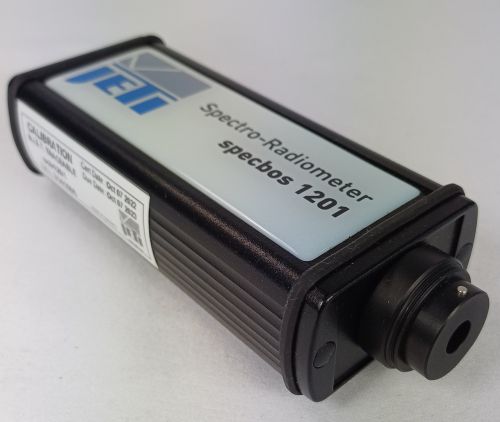

specbos 1201

JETI spectroradiometer specbos 1201
VIS
  • Produced from 2005 to 2013.
  • Calibration: No longer possible.
  • Repair: On request.
Datasheet
iconPDFspecbos 1201 (181.61 KB)
  • Wavelength range: 380 nm ... 780 nm
  • Spectral resolution: 5 nm
  • Interfaces:
    USB 2.0 fullspeed
  • Applications: Measurement of
    TV, Monitors, LCD-, LED-Displays,
    Digital projectors,
    Traffic lights, car lights,
    Room illumination
    Lamps, LEDs

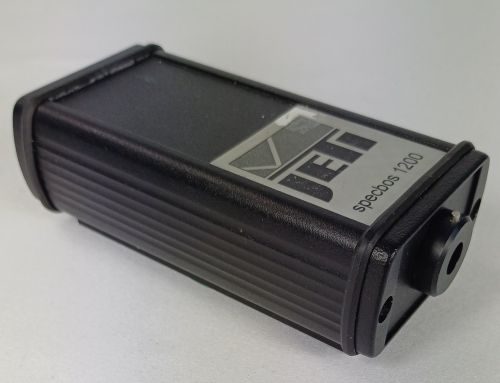

specbos 1200

JETI spectroradiometer specbos 1200
VIS
  • Produced from 2003 to 2006.
  • Calibration: Possible.
  • Repair: No longer possible.
Datasheet
iconPDFspecbos 1200 (305.78 KB)
  • Wavelength range: 380 nm ... 760 nm
  • Spectral resolution: 5 nm
  • Interfaces:
    RS 232, 8N1, 38400 Bd or USB1.1 fullspeed (12Mbit/sec)
  • Applications: Measurement of
    CRT Monitors, LCD and LED Displays,
    Traffic lights, automotive lighting,
    Illumination sources,
    Lamp burn-in testing

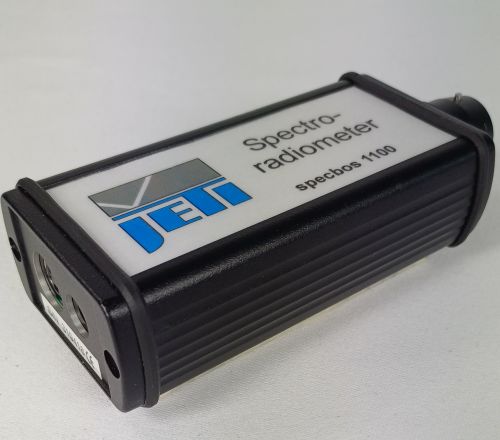

specbos 1100

JETI spectroradiometer specbos 1100
VIS
  • Produced from 2000 to 2003.
  • Calibration: No longer possible.
  • Repair: No longer possible.
Datasheet
iconPDFspecbos 1100 (125.36 KB)
  • Wavelength range: 380 nm ... 760 nm
  • Spectral resolution: 9 nm
  • Interfaces:
    RS 232, 8N1, 38400 Bd or USB1.1 fullspeed (12Mbit/sec)
  • Applications: Measurement of
    diffuse light sources, screens etc

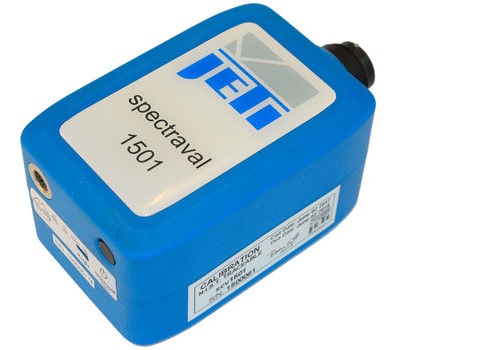

spectraval 1501

JETI spectroradiometer spectraval 1501
VIS | NIR
  • Produced from 2016 to 2024.
  • Calibration: Possible.
  • Repair: Posssible.
Datasheet
iconPDFspectraval 1501 (461.61 KB)


Read more
  • Wavelength range: 380 nm ... 780 nm / 380 nm ... 1000 nm (1501-NIR)
  • Spectral resolution: ≤ 4.5 nm (FWHM) / spectraval 1501-HiRes: ≤ 2 nm (FWHM)
  • Interfaces:
    USB 2.0 full speed
    Bluetooth, alternatively LAN (1501-LAN)
  • Applications:
    Please see datasheet.

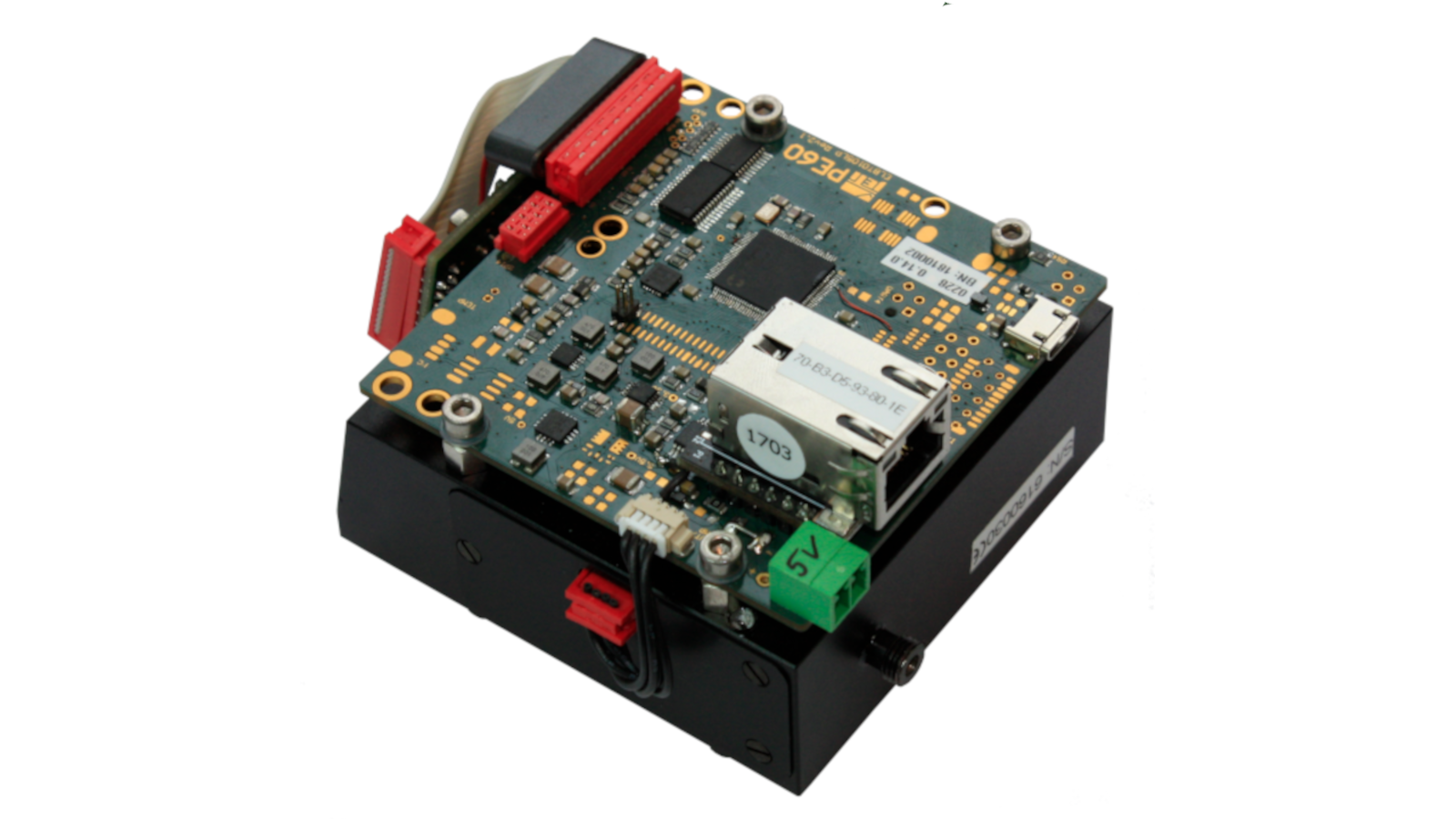

RU60

JETI spectroradiometer
UV | VIS | NIR
  • Produced from 2018 to 2024.
  • Service & Repair: Possible.
Datasheet
iconPDFRU60 (443.76 KB)


Read more

  • Wavelength range: 200 nm ... 1000 nm
  • Spectral resolution: ≤ 4.5 nm (100 µm slit), 2.5 nm (50 µm slit), 2.0 nm (25 µm slit) (FWHM)
  • Interfaces:
    micro USB, optional LAN interface
  • Optional extra: Shutter
  • Applications:
    Please see datasheet.

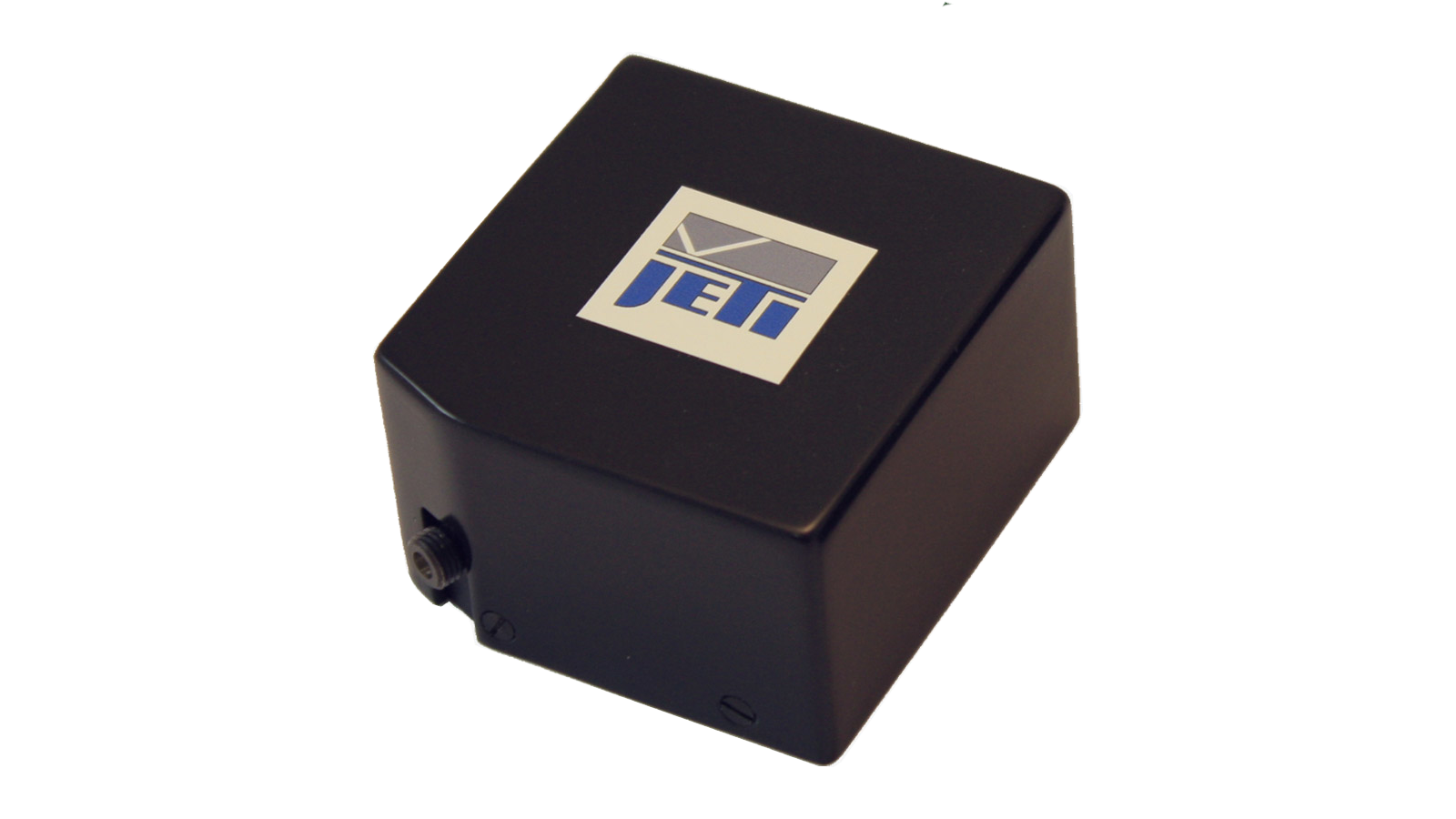

RU40/90

JETI spectroradiometer
UV | VIS | NIR
  • Produced from 2016 to 2024
  • Service & Repair: Possible.
Datasheet
iconPDFRU40/90 (386.54 KB)


Read more

  • Wavelength range: 300 nm ... 1000 nm
  • Spectral resolution: ≤  4.5 nm (50 µm slit) (FWHM)
  • Interface: micro USB
  • Optional extra: Shutter
  • Special versions: BlueSpecCube, LANSpecCube
  • Applications:
    Please see datasheet.

There are no discontinued readout electronics to be listed here.
