Add-on optics for different measuring geometries
Article number: ACC 006, ACC 007, ACC 008, ACC 009Device: specbos 2501, specbos 1211-2,spectraval 1511, spectraval 1501
The measuring geometry of the basic device is restricted by its viewing angle of 2.1° and a minimum measuring diameter of 4 mm. A specific measuring diameter can be achieved only in a fixed distance.

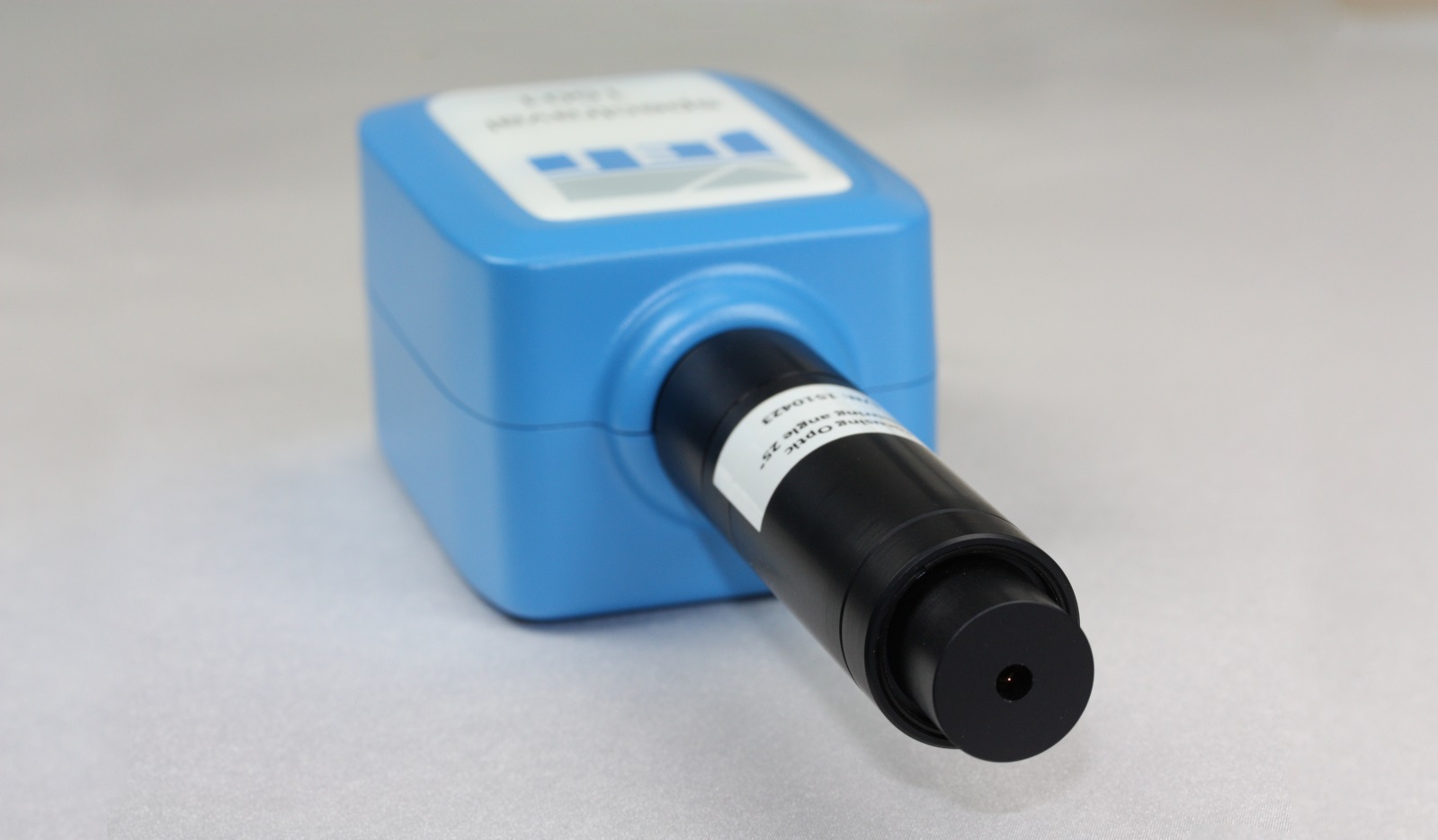

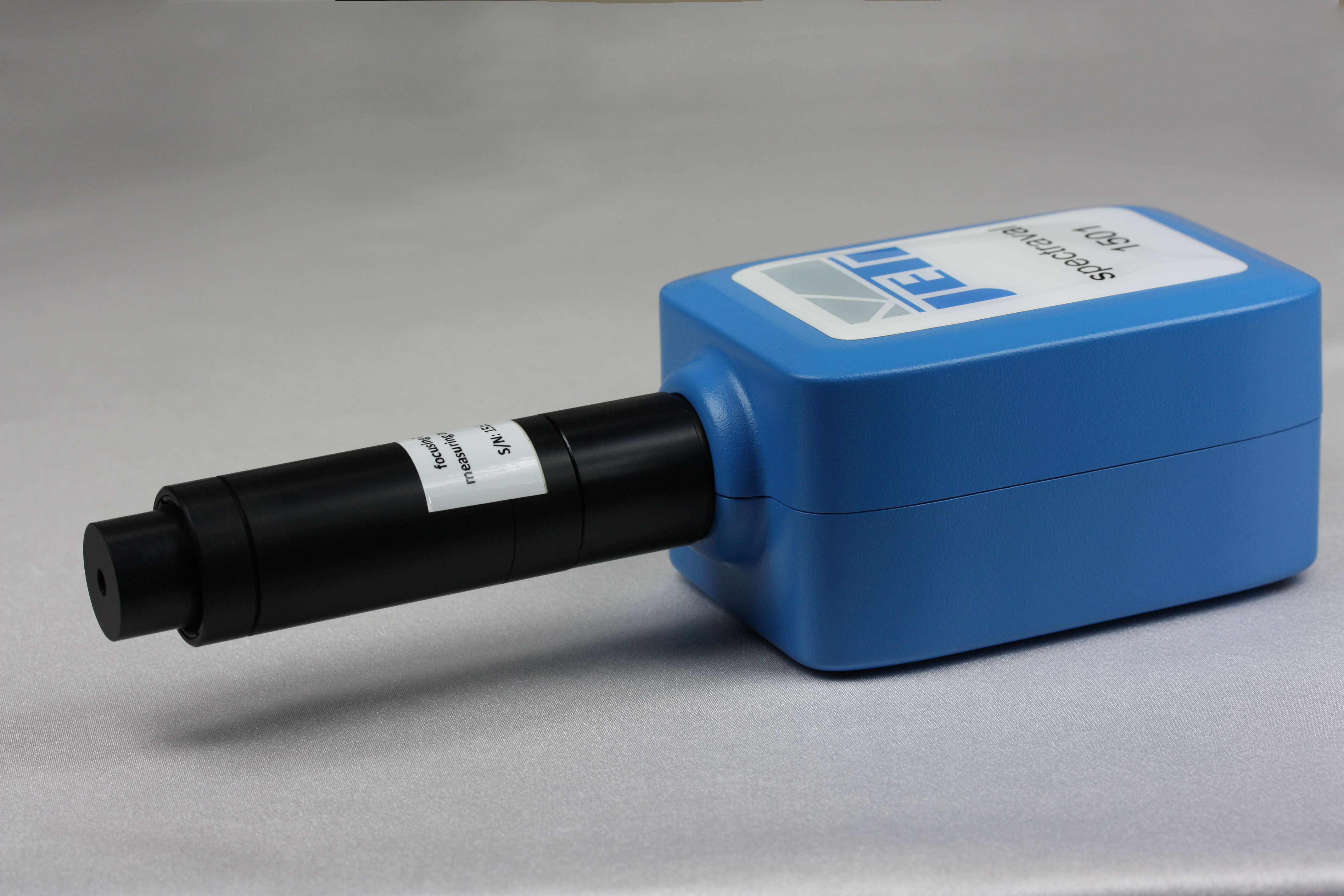

JETI offers a variety of add-on optics to achive certain different measuring geometries. Two kinds of optics are available:
In addition, customized Add-on optics are possible.
Please note:
It is not possible to equip an existing standard model with these optics. It can only be used with the focus version of spectraval or specbos.
Add-on optics for spectroradiometer JETI specbos
| Measuring diameter | Measuring distance | specbos 2501 | specbos 2501-UV | specbos 1211-2 | specbos 1211-UV-2 |
| 0.5 mm | 46 mm | ACC 008/3 | ACC 008/3UV | ACC 008/1 | ACC 008/1UV |
| 1 mm | 26 mm | ACC 007/3 | ACC 007/3UV | ACC 007/1 | ACC 007/1UV |
| 1.5 mm | 56 mm | on request | on request | ACC 009/1/1.5_56 | ACC 009/1/1.5_56 UV |
| 3 mm | 70 mm | ACC 006/3 | ACC 006/3UV | ACC 006/1 | ACC 006/1UV |
| 10 mm | 700 mm | on request | on request | ACC 009/1/10_700 | ACC 009/1/10_700 UV |
| 10 mm | 1020 mm | on request | on request | ACC 009/1/10_1020 | ACC 009/1/10_1020 UV |

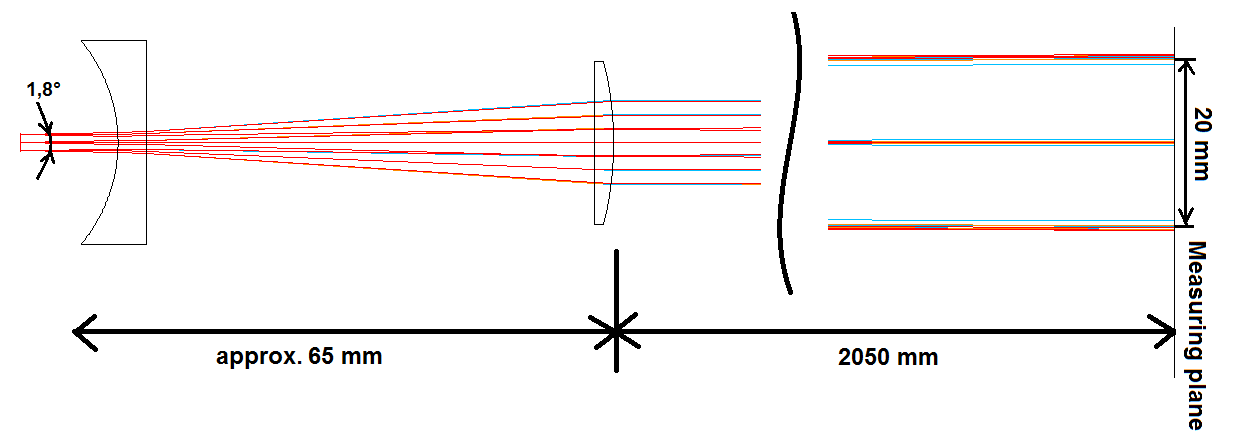

| 20 mm | 2050 mm | on request | on request | ACC 009/1/20_2050 | ACC 009/1/20_2050 UV |
| 120 mm | 1300 mm | on request | on request | ACC 009/1/120_1300 | ACC 009/1/120_1300 UV |
| 210 mm | 420 mm | on request | on request | ACC 009/1/210_420 | ACC 009/1/210_420 UV |
| Measuring diameter: 0.5 mm Measuring distance: 46 mm ACC 008/3 (2501) ACC 008/3UV (2501-UV) ACC 008/1 (1211-2) ACC 008/1UV (1211-UV-2) |
| Measuring diameter: 1 mm Measuring distance: 26 mm ACC 007/3 (2501) ACC 007/3UV (2501-UV) ACC 007/1 (1211-2) ACC 007/1UV (1211-UV-2) |
| Measuring diameter: 1.5 mm Measuring distance: 56 mm on request (2501) on request (2501-UV) ACC 009/1/1.5_56 (1211-2) ACC 009/1/1.5_56 UV (1211-UV-2) |
| Measuring diameter: 3 mm Measuring distance: 70 mm ACC 006/3 (2501) ACC 006/3UV (2501-UV) ACC 006/1 (1211-2) ACC 006/1UV (1211-UV-2) |
| Measuring diameter: 10 mm Measuring distance: 700 mm on request (2501) on request (2501-UV) ACC 009/1/10_700 (1211-2) ACC 009/1/10_700UV (1211-UV-2) |
| Measuring diameter: 10 mm Measuring distance: 1020 mm on request (2501) on request (2501-UV) ACC 009/1/10_1020 (1211-2) ACC 009/1/10_1020UV (1211-UV-2) |
| Measuring diameter: 20 mm Measuring distance: 2050 mm on request (2501) on request (2501-UV) ACC 009/1/20_2050 (1211-2) ACC 009/1/20_2050UV (1211-UV-2) |
| Measuring diameter: 120 mm Measuring distance: 1300 mm on request (2501) on request (2501-UV) ACC 009/1/120_1300 (1211-2) ACC 009/1/120_1300UV (1211-UV-2) |
| Measuring diameter: 210 mm Measuring distance: 420 mm on request (2501) on request (2501-UV) ACC 009/1/210_420 (1211-2) ACC 009/1/210_420UV (1211-UV-2) |

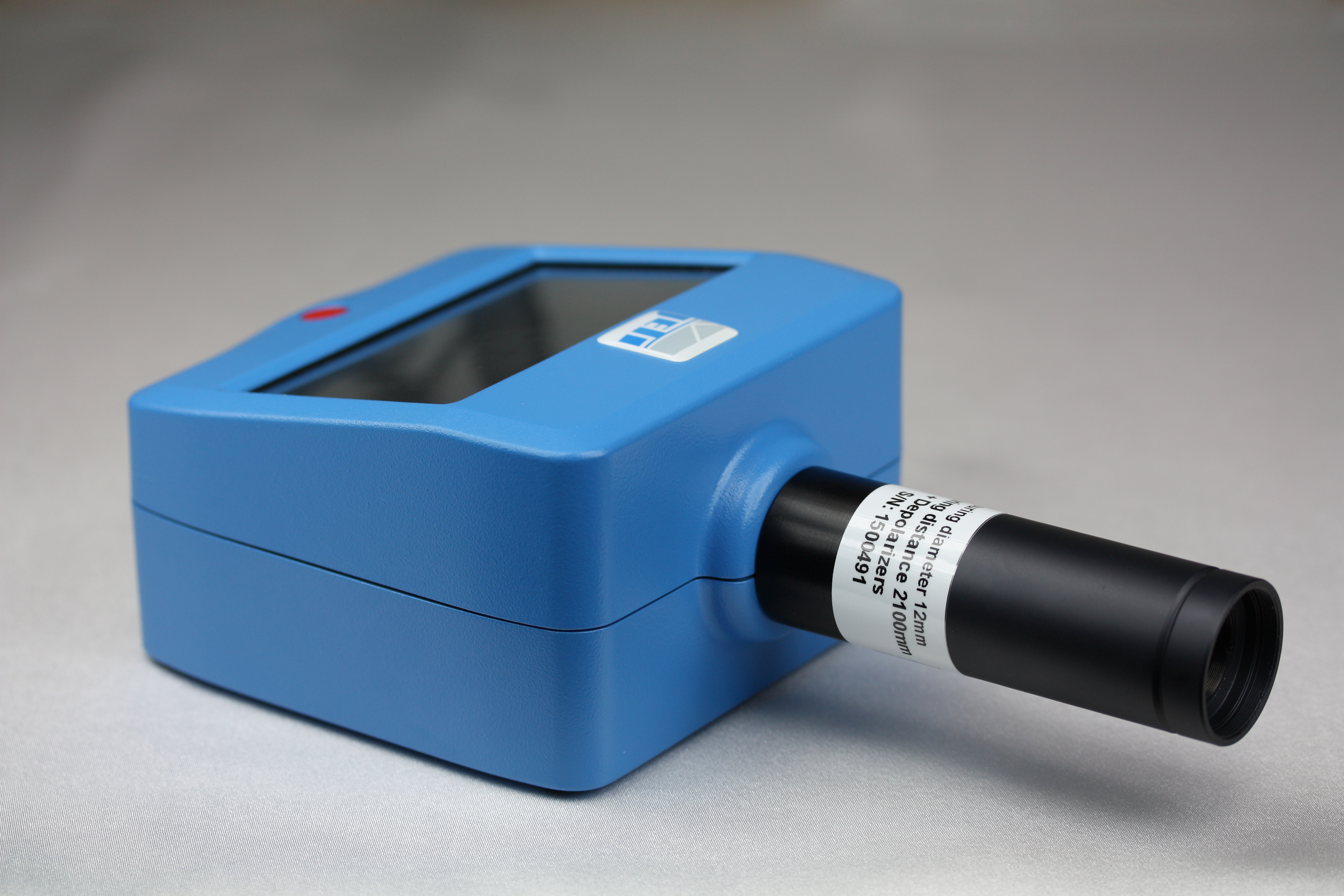

Add-on optics for spectroradiometer JETI spectraval
| Measuring diameter | Measuring distance | Part number for spectraval 1501 and spectraval 1511 | Part number for spectraval 1501-NIR and spectraval 1511-NIR |
| 0.5 mm | 46 mm | ACC 008/2 | ACC 008/2NIR |
| 1 mm | 26 mm | ACC 007/2 | ACC 007/2NIR |
| 3 mm | 70 mm | ACC 006/2 | ACC 006/2NIR |
| 4 mm | 90 mm | ACC 009/2/4_90 | ACC 009/2/4_90 NIR |

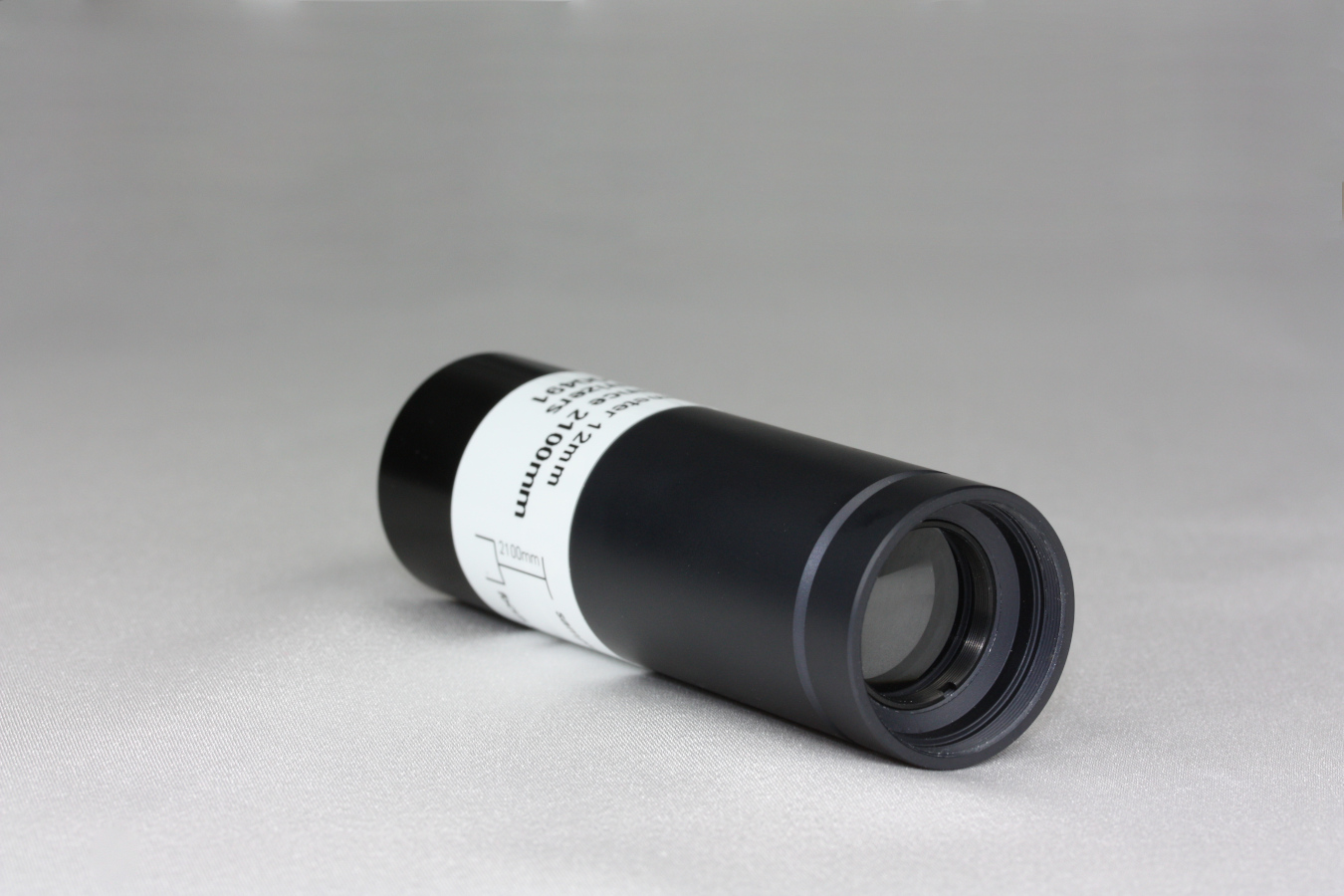

| 12 mm | 2100 mm | ACC 009/2/12_2100 | ACC 009/2/12_2100 NIR |
| Measuring diameter: 0.5 mm | Measuring distance: 46 mm |
Part number for spectraval 1501 and spectraval 1511: ACC 008/2 |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 008/2NIR |
| Measuring diameter: 1 mm | Measuring distance: 26 mm |
Part number for spectraval 1501 and spectraval 1511: ACC 007/2 |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 007/2NIR |
| Measuring diameter: 3 mm | Measuring distance: 70 mm |
Part number for spectraval 1501 and spectraval 1511: ACC 006/2 |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 006/2NIR |
| Measuring diameter: 4 mm | Measuring distance: 90 mm |
Part number for spectraval 1501 and spectraval 1511: ACC 009/2/4_90 |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 009/2/4_90 NIR |
| Measuring diameter: 12 mm | Measuring distance: 2100 mm |
Part number for spectraval 1501 and spectraval 1511: ACC 009/2/12_2100 |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 009/2/12_2100 NIR |
| Measuring angle | Part number for specbos 2501 | Part number for spectraval 1501 and spectraval 1511 | Part number for spectraval 1501-NIR and spectraval 1511-NIR |
| 10° | ACC 009/3/10° | ACC 009/2/10° | ACC 009/2/10° NIR |
| 25° | ACC 009/3/25° | ACC 009/2/25° | ACC 009/2/25° NIR |
| Measuring angle: 10° | Part number for specbos 2501: ACC 009/3/10° |
Part number for spectraval 1501 and spectraval 1511: ACC 009/2/10° |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 009/2/10° NIR |
| Measuring angle: 25° | Part number for specbos 2501: ACC 009/3/25° |
Part number for spectraval 1501 and spectraval 1511: ACC 009/2/25° |
Part number for spectraval 1501-NIR and spectraval 1511-NIR: ACC 009/2/25° NIR |
If you need another geometry for your application, we will check if it is possible. Please send us the desired measuring diameter d (in mm) with the measuring distance D (in mm) and you will receive an offer from us, if the realization is possible.
Example: If you would like to have an optics with a measuring diameter of 200 mm and a measuring distance of 2050 mm, request this as follows: ACC 009/20_2050
